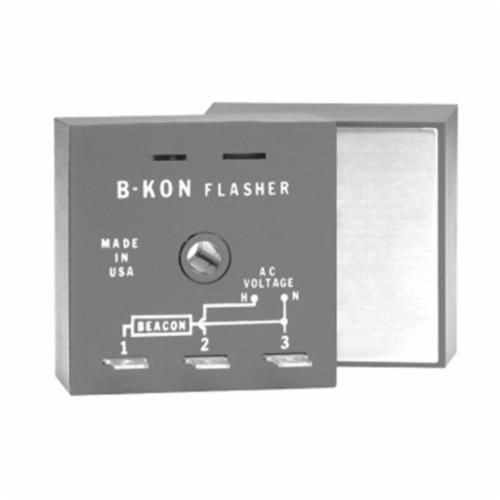

Littelfuse® SSAC® FS155-30T FS Series Standard Beacon Flasher, 200 A, 120 VAC V Coil

Selected Littelfuse® SSAC® FS155-30T FS Series Standard Beacon Flasher, 200 A, 120 VAC V Coil
Littelfuse® SSAC® FS155-30T FS Series Standard Beacon Flasher, 200 A, 120 VAC V Coil

Short Description

The FA and FS series flashers have proven their reliability through years of use on communication towers, smoke stacks, cooling towers, tall buildings, bridges and utility towers. The highest quality components are encapsulated in a rugged plastic housing with a molded-in heat transfer plate. The flash rate, ratio and fail safe design meet FAA regulations. Zero voltage switching can increase lamp life up to ten times. The FS155-30RF and FS165-30RF include superior RF filtering circuitry for use in high RF installations, including AM hot towers.

Features

  • Zero voltage switching delivers up to 10 times longer lamp life
  • Encapsulated protects against shock, vibration and humidity
  • Metalized mounting surface facilitates heat transfer in high current applications
  • High inrush capability up to 200 A will withstand the repetitive inrush current of incandescent beacons
  • 30 fpm +/-10% flash rate

Specification

Frequency Rating
50/60 Hz
Mounting Type
Surface
Power Rating
2500 W
Series
FS Series
Temperature Rating
-20 to 60 deg F
Terminal Type
Male Quick Connect
Type
Standard
Application
For non-RF locations
Standard & Approvals
CSA Certified, PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
Amperage Rating
200 A
Dimensions
2 in H x 2 in W x 1.51 in D
Coil Voltage
120 VAC
