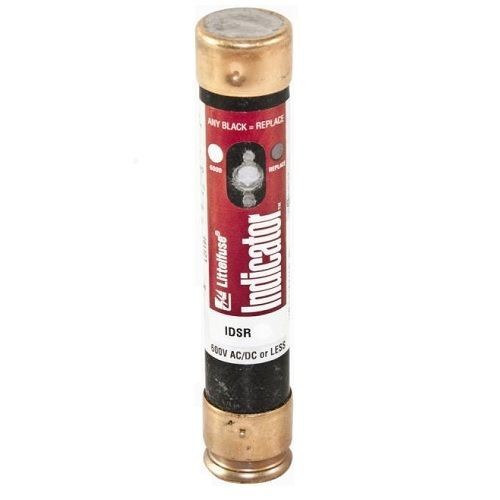

Littelfuse® POWR-GARD® IDSR030 Current Limiting Time Delay Fuse, 30 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Selected Littelfuse® POWR-GARD® IDSR030 Current Limiting Time Delay Fuse, 30 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Littelfuse® POWR-GARD® IDSR030 Current Limiting Time Delay Fuse, 30 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Documents

Short Description

The Littelfuse IDSR indicator fuse is the first indicating power fuse ever. Its solid-state design provides state-of-the-art reliability; it will forever change the way you look at modern circuit protection. Money is wasted each time a circuit opens and halts production. Thousands of dollars can be lost with every minute spent testing to discover the cause. The Littelfuse IDSR indicator fuse offers you a better way. Just a simple glance a the IDSR Indicator’s window tells which circuit is open. The circuit can be tested and any problem corrected without unnecessary delay. No time wasted finding the faulted circuit. No system damage. And no costly down time.

Features

  • Patented design fuses
  • Pinpoint open fuses immediately
  • Reduce down time
  • Superior time delay
  • 200/300 kA RMS symmetrical self certified
  • Bronze caps

Specification

Mounting Type
Holder
Response Time
10 sec at 500%
Terminal Type
Ferrule
Voltage Rating
600 VAC/VDC
Application
DC Circuits, Solar Inverters, Motors, Transformers, Solenoids and Fluorescent Lighting
Amperage Rating
30 A
Body Style
Cylindrical
Element
Dual
Standard & Approvals
Standard 248-12 and UL 198M, UL File No. E81895 Listed, CSA Certified, RoHS Complaint
Series
IDSR
Type
Current Limiting
Interrupt Rating
200/300/20 kA
Material
Composite
Class
RK5
Body Size
13/16 in Dia x 5 in L
