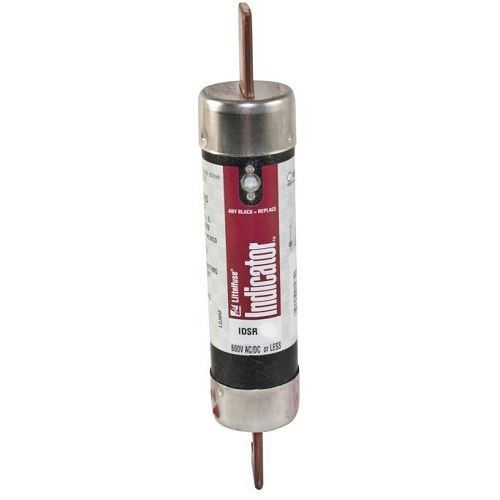

Littelfuse® POWR-GARD® Slo-Blo® IDSR125 Current Limiting Time Delay Fuse, 125 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Selected Littelfuse® POWR-GARD® Slo-Blo® IDSR125 Current Limiting Time Delay Fuse, 125 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Littelfuse® POWR-GARD® Slo-Blo® IDSR125 Current Limiting Time Delay Fuse, 125 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Documents

Short Description

The Littelfuse IDSR indicator fuse is the first indicating power fuse ever. Its solid-state design provides state-of-the-art reliability, it will forever change the way you look at modern circuit protection. Money is wasted each time a circuit opens and halts production. Thousands of dollars can be lost with every minute spent testing to discover the cause. The Littelfuse IDSR indicator fuse offers you a better way. Just a simple glance a the IDSR Indicators window tells which circuit is open. The circuit can be tested and any problem corrected without unnecessary delay. No time wasted finding the faulted circuit. No system damage. And no costly down time.

Features

  • Patented design fuses
  • Pinpoint open fuses immediately
  • Reduce down time
  • Superior time delay
  • 200 kA at 600 VAC/20 kA at 600 VDC interrupt rating

Specification

Interrupt Rating
200/20 kA
Material
Composite
Mounting Type
Holder
Series
IDSR
Terminal Type
Knife Blade
Type
Slow-Blow
Voltage Rating
600 VAC/VDC
Application
DC Circuits, Solar Inverters, Motors, Transformers, Solenoids and Fluorescent Lighting
Standard & Approvals
CE Certified, CSA Certified, IEC 60127-2, RoHS Compliant, UL Listed
Amperage Rating
125 A
Body Size
1-27/32 in Dia x 9-5/8 in L
Body Style
Cartridge
Class
RK5
Element
Dual
