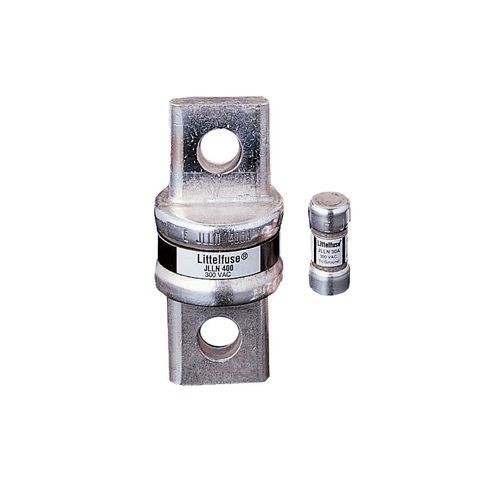

Littelfuse® POWR-GARD® JLLN010.T Current Limiting Fast Acting Fuse, 10 A, 300 VAC/125 VDC, 50/200 kA Interrupt, T Class, Cartridge Body

Selected Littelfuse® POWR-GARD® JLLN010.T Current Limiting Fast Acting Fuse, 10 A, 300 VAC/125 VDC, 50/200 kA Interrupt, T Class, Cartridge Body
Littelfuse® POWR-GARD® JLLN010.T Current Limiting Fast Acting Fuse, 10 A, 300 VAC/125 VDC, 50/200 kA Interrupt, T Class, Cartridge Body

Documents

Short Description

Space saving POWR-GARD Class T fuses are the most compact fuses available in ratings above 30 amperes - less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide Fast-Acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.

Features

  • Extremely current- limiting compact design
  • Protection of individual electric services and meters
  • Used to provide compact protection for meter stacks
  • Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents
  • 200 kA AC RMS Symmetrical, 50 kA DC interrupt rating
  • Bronze caps
  • North American style

Specification

Interrupt Rating
200/50 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Body Style
Cartridge
Class
T
Terminal Type
Ferrule
Type
Current Limiting
Application
For variable speed drive protection, power supplies and power distribution units, power conversion devices (inverters, rectifiers, UPS), compact mains switches
Standard & Approvals
UL Standard 248-15, UL E81895 Listed, CSA Certified, RoHS Complaint
Amperage Rating
10 A
Catalog ID
L-FJLLN010
Body Size
0.406 in Dia x 0.875 in L
Voltage Rating
300 VAC/125 VDC
Series
JLLN
