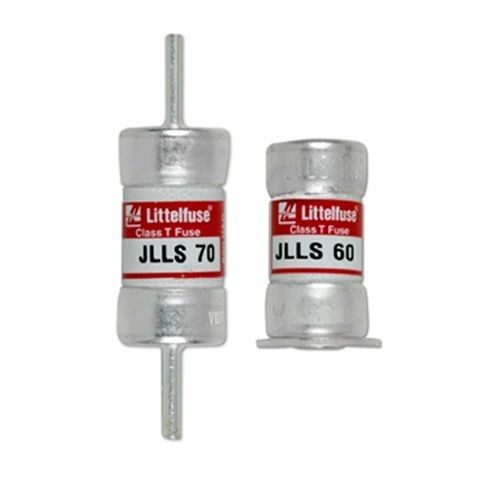

Littelfuse® POWR-GARD® JLLS030.T Current Limiting Fast Acting Fuse, 30 A, 600 VAC/300 VDC, 20/200 kA Interrupt, T Class, Cartridge Body

Selected JLLS030Littelfuse® POWR-GARD® JLLS030.T Current Limiting Fast Acting Fuse, 30 A, 600 VAC/300 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
JLLS030Littelfuse® POWR-GARD® JLLS030.T Current Limiting Fast Acting Fuse, 30 A, 600 VAC/300 VDC, 20/200 kA Interrupt, T Class, Cartridge Body

Documents

Short Description

Space-saving Class T fuses are the most compact fuses available in ratings above 30 amperes - less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide Fast-Acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.

Features

  • Extremely current- limiting compact design
  • Protection of individual electric services and meters
  • Used to provide compact protection for meter stacks
  • Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents
  • 200 kA AC RMS symmetrical, 20 kA DC interrupt rating
  • Copper caps

Specification

Interrupt Rating
200/20 kA
Material
Melamine
Mounting Type
Holder
Series
JLLS
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 VAC/300 VDC
Application
For variable speed drive protection, power supplies and power distribution units, power conversion devices (inverters, rectifiers, UPS), compact mains switches
Standard & Approvals
UL Standard 248-15, UL E81895 Listed, CSA Certified, RoHS Complaint
Amperage Rating
30 A
Body Size
0.562 in Dia x 1.5 in L
Body Style
Cartridge
Class
T
