Littelfuse® POWR-GARD® JLLS150 Current Limiting Fast Acting Fuse, 150 A, 600 V AC/300 V DC, 20/200 kA Interrupt, T Class, Cartridge Body

Selected Littelfuse JLLS900

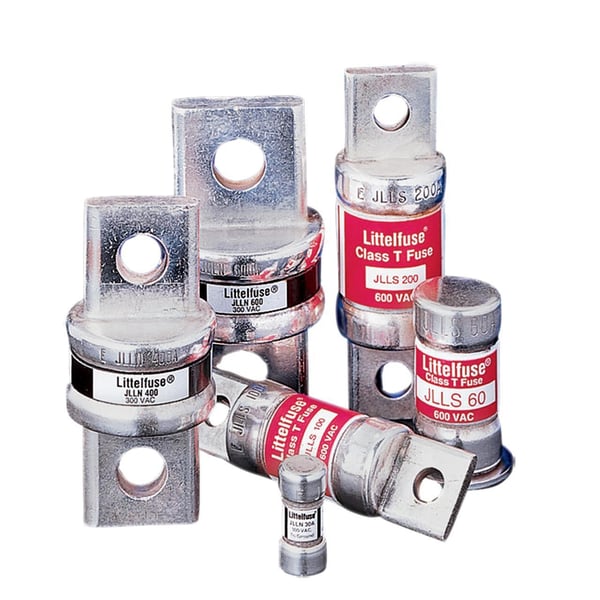

Littelfuse JLLS900

Documents

Short Description

Space saving Class T fuses are the most compact fuses available in ratings above 30 A - less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide Fast Acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.

Features

  • Extremely current- limiting compact design
  • Protection of individual electric services and meters
  • Used to provide compact protection for meter stacks
  • Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents
  • 200 kA AC rms symmetrical and 20 kA DC interrupt rating
  • Copper caps

Specification

Mounting Type
Holder
Interrupt Rating
20/200 kA
Series
JLLS
Terminal Type
Knife Blade
Indicating/Non-Indicating
Non-Indicating
Type
Current Limiting
Material
Melamine
Voltage Rating
600 V AC/300 V DC
Body Type
Cartridge
Body Size
1.078 in Dia x 3.25 in L
Amperage Rating
150 A
Class
T
