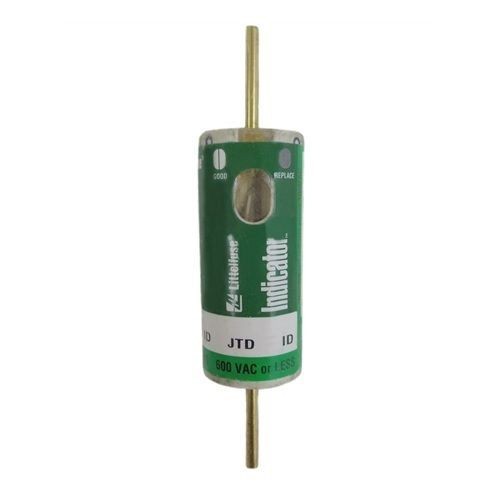

Littelfuse® POWR-GARD® JTD125ID Current Limiting Time Delay Fuse, 125 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body

Selected Littelfuse® POWR-GARD® JTD125ID Current Limiting Time Delay Fuse, 125 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body
Littelfuse® POWR-GARD® JTD125ID Current Limiting Time Delay Fuse, 125 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body

Documents

Short Description

The Littelfuse POWR-PRO JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.

Features

  • Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately. If the window is dark, the fuse has opened. It’s that simple. No fuse testing required. Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement
  • Reduce nuisance opening - Indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce fuse inventory - Because JTD_ID Indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce equipment damage - Indicator fuses provide superior overload and short circuit protection that can reduce equipment damage. Indicator fuses also provide IEC Type II "No Damage" protection to IEC and NEMA type motor starters
  • Reduce accidents - The JTD_ID Indicator fuse improves safety by minimizing exposure to live circuits
  • IEC Type 2 protection
  • 200 kA RMS symmetrical at 600 VAC/20 kA at 500 VDC

Specification

Interrupt Rating
200/20 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
125 A
Body Size
1-1/2 in Dia x 5-3/4 in L
Body Style
Cartridge
Class
J
Element
Dual
Series
JTD
Terminal Type
Knife Blade
Type
Current Limiting
Voltage Rating
600 VAC/500 VDC
Application
For fused combination motor controllers and motor control centers, transformer protection, protection for series rated molded case circuit-breaker panels and general purpose circuits
Standard & Approvals
UL 248-8, UL File No. E81895, CSA File No. LR29862, RoHS Compliant
Catalog ID
L-FJTD125ID
