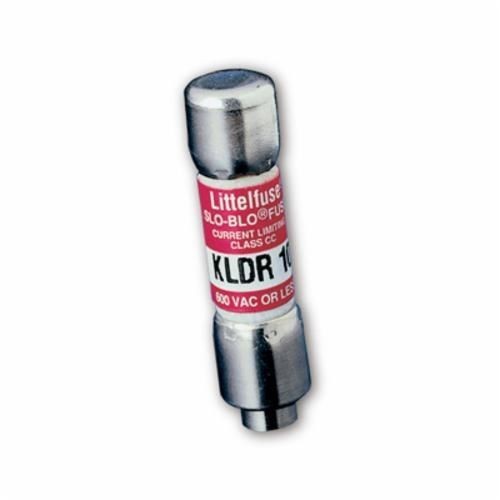

Littelfuse® POWR-GARD® KLDR03.2TXP Current Limiting Time Delay Fuse, 3.2 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Selected Littelfuse® POWR-GARD® KLDR03.2TXP Current Limiting Time Delay Fuse, 3.2 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® KLDR03.2TXP Current Limiting Time Delay Fuse, 3.2 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Documents

Short Description

KLDR fuses are time-delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.

Features

  • Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
  • Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
  • 200 kA AC (RMS symmetrical)
  • Nickel plated bronze cap
  • 12 sec minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%

Specification

Interrupt Rating
200/20 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
3.2 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cartridge
Catalog ID
L-FKLDR03.2TXP
Class
CC
Response Time
12 sec at 200%
Series
KLDR
Terminal Type
Ferrule
Voltage Rating
600 VAC/300 VDC
Application
For transformer protection
Standard & Approvals
UL 248-4, CSA Certified, RoHS Compliant
