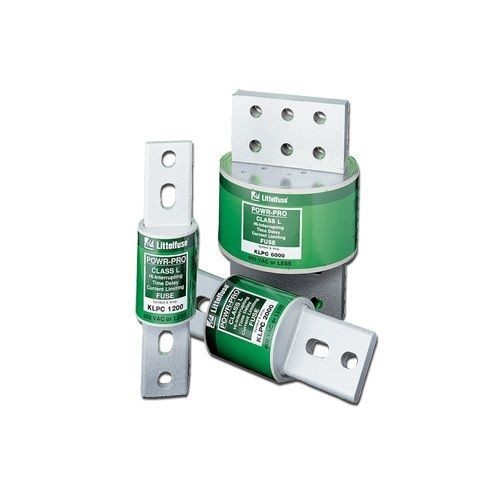

Littelfuse® POWR-GARD® KLPC1200 Current Limiting Time Delay Fuse, 1200 A, 600 VAC/480 VDC, 20/200 kA Interrupt, L Class, Cylindrical Body

Selected Littelfuse® POWR-GARD® KLPC1200 Current Limiting Time Delay Fuse, 1200 A, 600 VAC/480 VDC, 20/200 kA Interrupt, L Class, Cylindrical Body
Littelfuse® POWR-GARD® KLPC1200 Current Limiting Time Delay Fuse, 1200 A, 600 VAC/480 VDC, 20/200 kA Interrupt, L Class, Cylindrical Body

Documents

Short Description

KLPC series POWR-PRO fuses provide ideal over current protection for circuits from 200 through 6000 amperes. KLPC series POWR-PRO fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals between body and end bells, and granular quartz fillers. KLPC series POWR-PRO fuses are the only UL listed Class L fuses that provide a minimum of ten seconds time delay at 500% rated current and are also as current-limiting as the fastest Class L fuse on the market. On average, the peak let-through currents of KLPC series fuses are 10% less than any other "time-delay" Class L fuse.

Features

  • Eliminate unnecessary downtime
  • KLPC POWR-PRO series fuses time delay withstands system surges and keeps your circuits in service
  • Best protection for system components
  • Coordinates with other system components
  • KLPC series fuses provide maximum coordination with fuses and circuit breakers both on the line and load side of the fuses
  • Eliminate need to oversize fuses
  • This may permit the use of smaller less expensive switches, and, since the lower rated fuses are more current-limiting, equipment receives even better protection
  • 300 kA AC Interrupting Rating (self certified)
  • Silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals between body and end bells, and granular quartz fillers
  • Bolt-On blade terminal

Specification

Interrupt Rating
200/20 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
1200 A
Body Size
2-1/2 in Dia x 10-3/4 in L
Body Style
Cylindrical
Catalog ID
L-FKLPC1200
Class
L
Series
KLPC
Terminal Type
Knife Blade
Type
Current Limiting
Voltage Rating
600 VAC/480 VDC
Application
Switchboard Mains and Feeders, Motor Control Center Mains, Large Motor Branch Circuits and Protection Of Power Circuit Breakers
Standard & Approvals
UL 248-10, File No. E81895, CSA File No. LR29862, Federal Specification QPL-W-F-1814
