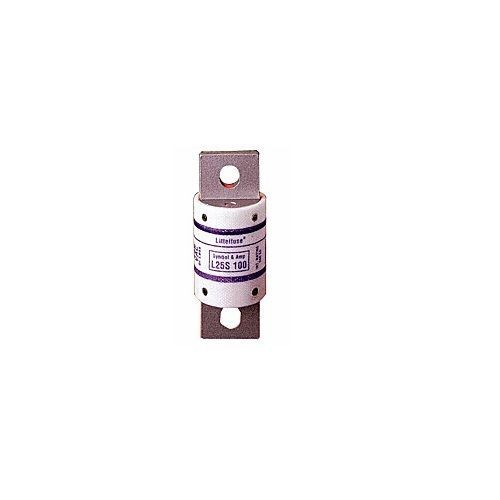

Littelfuse® POWR-GARD® L25S150 Very Fast Acting High Speed Semiconductor Fuse, 150 A, 250 VAC/VDC, 200/20 kA Interrupt, Round Body

Selected L25S150Littelfuse® POWR-GARD® L25S150 Very Fast Acting High Speed Semiconductor Fuse, 150 A, 250 VAC/VDC, 200/20 kA Interrupt, Round Body
L25S150Littelfuse® POWR-GARD® L25S150 Very Fast Acting High Speed Semiconductor Fuse, 150 A, 250 VAC/VDC, 200/20 kA Interrupt, Round Body

Documents

Short Description

Designed to protect today’s equipment and systems, Littelfuse semiconductor fuses are manufactured with Littelfuse-developed technology that sets tomorrow’s standards for accuracy, consistent quality, reliability, and predictable performance. By using advanced metallurgical, polymer, and materials research; mathematical modeling, and computerized statistical analysis; Littelfuse engineers have redefined "State-of-the-Art".

Features

  • Extremely current-limiting
  • Low watts loss
  • Controlled transient over voltages
  • 200 kA at 250 VAC/20 kA at 250 VDC interrupt rating
  • Very Fast Acting

Specification

Interrupt Rating
200/20 kA
Material
Fiberglass
Mounting Type
Stud
Type
High Speed Fast Acting
Voltage Rating
250 VAC/VDC
Application
For supplementary protection of semiconducting devices such as silicon controlled rectifiers (SCRs), diodes, thyristors, triacs, transistors and similar solid-state devices
Standard & Approvals
UL File No. E71611, CSA File No. LR29862, CE Certified, RoHS Compliant
Amperage Rating
150 A
Body Style
Round
Body Size
1-7/32 in Dia x 3-1/8 in L
Terminal Type
Blade
Series
L25S
