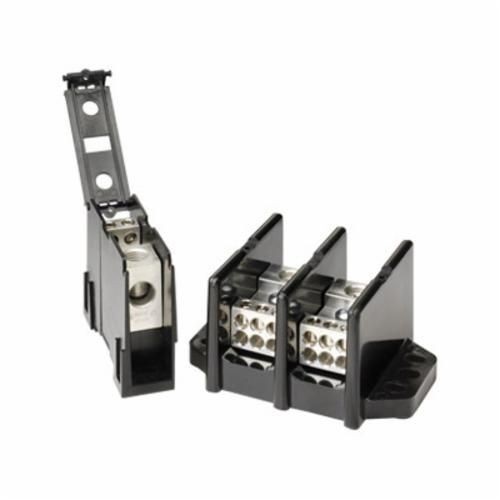

Littelfuse® POWR-GARD® POWR-BLOKS™ LD2570-1 LD Series Power Distribution Block, 600 VAC, 175 A, 1 Poles, 14 to 2/0 AWG Wire, Thermoplastic
Littelfuse® POWR-GARD® POWR-BLOKS™ LD2570-1 LD Series Power Distribution Block, 600 VAC, 175 A, 1 Poles, 14 to 2/0 AWG Wire, Thermoplastic
SKU: L-FLD2570-1
Manufacturer Part Number: LD2570-1
UPC: 79458014723
Documents
Short Description
Features
- Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material
- They also protect personnel from accidentally contacting energized connectors
- Fixing junction tap-off point
- 14 - 2/0 AWG aluminum line, 14 - 4 AWG aluminum load
- 35 - 120 in-lb torque line, 35 in-lb torque load
- 5/16 in hex lug line, 1/8 in Hex lug load
- Flammability rating UL 94 V-0
- Bolt-in mount
- (1) Lug primary, (4) Lug secondary
Specification
| Material | Thermoplastic |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 175 A |
| Catalog ID | L-FLD2570-1 |
| Color | Black |
| Dimensions | 2.88 in H x 1.13 in W x 1.78 in D |
| Primary Connections/Pole | 1 |
| Secondary Connection/Pole | 4 |
| Series | POWR-BLOKS LD |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 2/0 AWG |
| Application | For heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear and anywhere power needs to be distributed to more than one load |
| Standard & Approvals | CSA File No. LR700111 Certified, RoHS Compliant, UL File No. E171395 Listed |
