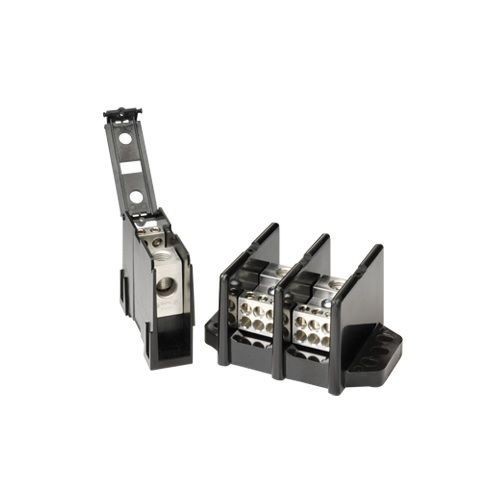

Littelfuse® POWR-GARD® POWR-BLOKS™ LFD5579-3 LD Series Splicer Terminal Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil Wire, Thermoplastic

Selected Littelfuse® POWR-GARD® POWR-BLOKS™ LFD5579-3 LD Series Splicer Terminal Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil Wire, Thermoplastic
Littelfuse® POWR-GARD® POWR-BLOKS™ LFD5579-3 LD Series Splicer Terminal Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil Wire, Thermoplastic

Documents

Short Description

POWR-BLOKS™ power distribution and splicer blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point, or splitting primary power into secondary circuits. Blocks have one or two primary inputs, with up to twelve secondary outputs per pole. The number of poles available ranges from one to four.

Features

  • For use in heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear and anywhere power needs to be distributed to more than one load
  • Bolt-in mount
  • Non indicating
  • Flammability rating 94 V-0
  • Two thread-cutting screws are furnished for each cover
  • Covers are slotted for easy installation
  • (1) 500 kcmil - 4 AWG line, (6) 2/0 - 14 load rated wire range
  • (1) Box lug primary, (6) Box lug secondary

Specification

Fuse Type
Fast Acting
Material
Thermoplastic
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
380 A
Catalog ID
L-FLFD5579-3
Dimensions
5.38 in L x 3.38 in W x 2.9 in H
Voltage Rating
600 VAC
Application
For Anywhere power needs to be distributed to more than one load
Primary Connections/Pole
1
Secondary Connection/Pole
6
Short Circuit Current Rating
200 kA
Standard & Approvals
CSA File No. LR700111 Certified, RoHS Compliant, UL File No. E171395 Listed
