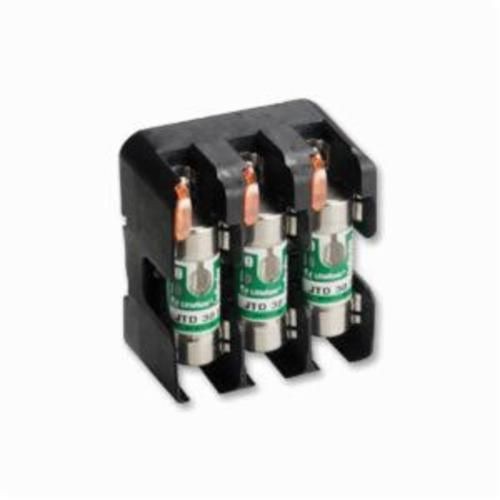

Littelfuse® POWR-GARD® LFJ60030-3CID Indicating Fuse Block, 600 VAC, 30 A, Class: J, 22 to 10 AWG Wire, 3 Poles
Selected LFJ60030-3CIDLittelfuse® POWR-GARD® LFJ60030-3CID Indicating Fuse Block, 600 VAC, 30 A, Class: J, 22 to 10 AWG Wire, 3 Poles
Littelfuse® POWR-GARD® LFJ60030-3CID Indicating Fuse Block, 600 VAC, 30 A, Class: J, 22 to 10 AWG Wire, 3 Poles
SKU: L-FLFJ60030-3CID
Manufacturer Part Number: LFJ60030-3CID
Documents
Short Description
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.
Features
- space saving design up to 45% smaller
- Universal mounting holes for easy replacement
- One hand release from DIN rail for ferrule style fuses
- Reinforced fuse clips are standard on all Class J blocks
- <0.6 mA at 600 V leakage current
- UL94 V-0 flammability rating
- Lead (Pb) free
- Phenolic blocks have side barriers for isolation
- Indication offered on all versions except 200A-600A
- DIN-Rail releasable for all non-knife blade style fuses
- Covers available for 100 A and lower to enhance safety
Specification
| Fuse Length | 2.252 in |
|---|---|
| Material | Thermoplastic |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Series | LFJ |
| Suitable For Use With | JTD_ID, JTD Time-Delay Fuses and JLS Fast Acting Fuses |
| Type | Indicating |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Amperage Rating | 30 A |
| Class | J |
| Connection Type | Box Lug |
| Dimensions | 3.84 in L x 3.25 in W x 1.95 in H |
| Wire Size | 10 to 22 AWG Cu |
| Temperature Rating | 125 deg C |
| Fuse Diameter | 0.811 in |
