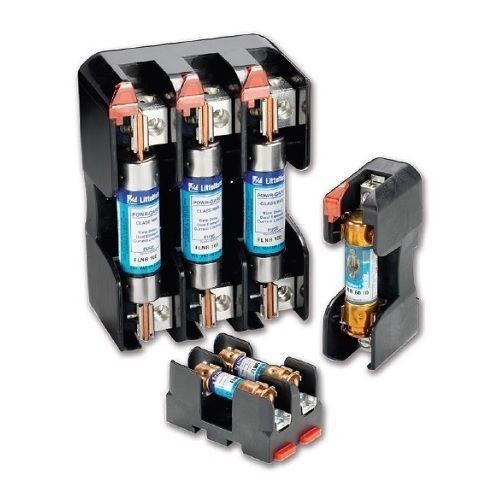

Littelfuse® POWR-GARD® LFR25030-3C Fuse Block, 250 VAC, 30 A, Class: R, 22 to 10 AWG Wire, 3 Poles

Selected LFR25030-3CLittelfuse® POWR-GARD® LFR25030-3C Fuse Block, 250 VAC, 30 A, Class: R, 22 to 10 AWG Wire, 3 Poles
LFR25030-3CLittelfuse® POWR-GARD® LFR25030-3C Fuse Block, 250 VAC, 30 A, Class: R, 22 to 10 AWG Wire, 3 Poles

Documents

Short Description

The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.

Features

  • Universal mounting holes for easy replacement
  • One hand release from DIN rail for ferrule style fuses
  • Reinforced fuse clips are standard on all Class H and Class R fuse blocks
  • <0.6 mA at 600 V leakage current
  • 200 kA RMS symmetrical withstand rating
  • Clip designs maximize electrical contact and minimize heat rise
  • DIN-Rail releasable for all non-knife blade style fuses
  • UL94 V-0 flammability rating
  • Lead (Pb) free

Specification

Fuse Diameter
0.563 in
Fuse Length
2 in
Material
Thermoplastic
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
L-FLFR25030-3C
Class
R
Connection Type
Box Lug
Dimensions
3.15 in L x 2.94 in W x 1.58 in H
Series
LFR
Suitable For Use With
FLNR/FLNR_ID, KLNR and LLNRK Fuses
Temperature Rating
125 deg C
Voltage Rating
250 VAC
Wire Size
10 to 22 AWG Cu
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
