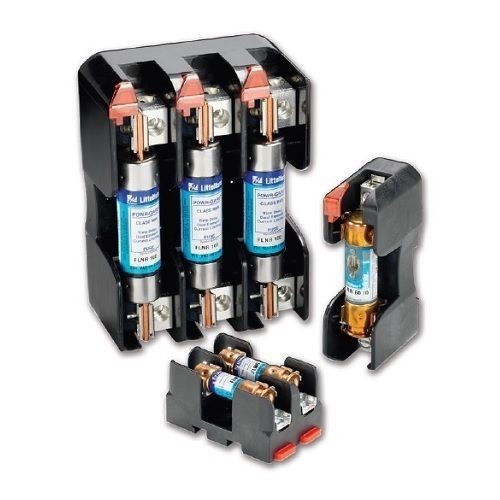

Littelfuse® POWR-GARD® LFR60060-3CID Indicating Fuse Block, 600 VAC, 60 A, Class: R, 14 to 6 AWG Wire, 3 Poles

Selected LFR60060-3CIDLittelfuse® POWR-GARD® LFR60060-3CID Indicating Fuse Block, 600 VAC, 60 A, Class: R, 14 to 6 AWG Wire, 3 Poles
LFR60060-3CIDLittelfuse® POWR-GARD® LFR60060-3CID Indicating Fuse Block, 600 VAC, 60 A, Class: R, 14 to 6 AWG Wire, 3 Poles

Documents

Short Description

The Littelfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.

Features

  • Universal mounting holes for easy replacement
  • One hand release from DIN rail for ferrule style fuses
  • Reinforced fuse clips are standard on all Class H and Class R fuse blocks
  • <0.6 mA at 600 V leakage current
  • 200 kA RMS symmetrical withstand rating
  • Clip designs maximize electrical contact and minimize heat rise
  • DIN-Rail releasable for all non-knife blade style fuses
  • UL94 V-0 flammability rating
  • Lead (Pb) free

Specification

Fuse Diameter
0.811 in
Fuse Length
3 in
Material
Thermoplastic
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
60 A
Catalog ID
L-FLFR60060-3CID
Class
R
Connection Type
Box Lug
Dimensions
7.25 in L x 4.25 in W x 2.35 in H
Series
LFR
Suitable For Use With
FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Fuses
Temperature Rating
130 deg C
Type
Indicating
Voltage Rating
600 VAC
Wire Size
6 to 14 AWG Cu
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
