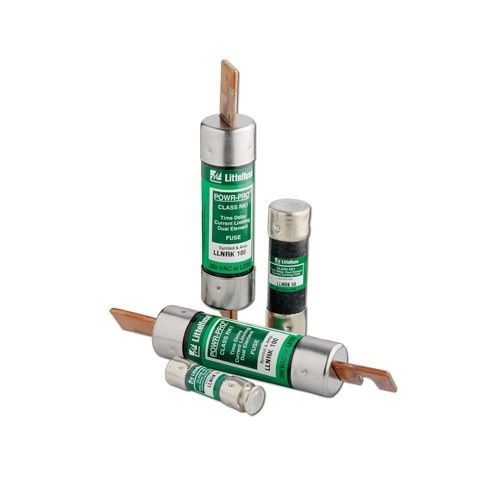

Littelfuse® POWR-GARD® LLNRK050 Current Limiting Time Delay Fuse, 50 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse® POWR-GARD® LLNRK050 Current Limiting Time Delay Fuse, 50 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
SKU: L-FLLNRK050
Manufacturer Part Number: LLNRK050
UPC: 079458330779
Documents
Short Description
Features
- Extremely current limiting - Reduces damage to circuits and equipment under short circuit conditions. Stops damaging short circuits faster than any mechanical protective device
- Reduced costs - Current limiting design often permits use of readily available, less costly equipment. Low resistance design reduces power consumption and utility bills
- Excellent time delay - True dual-element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly. Eliminates needless downtime caused by power surges or equipment demands
- IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters
- Indicating and DIN mount fuse holders available
- POWR-PRO performance
- 200 kA RMS symmetrical at 250 VAC/20 kA at 125 VDC
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Melamine |
| Mounting Type | Holder |
| Series | LLNRK |
| Terminal Type | Ferrule |
| Type | Extremely Current Limiting |
| Voltage Rating | 250 VAC/125 VDC |
| Application | All General Purpose Circuits, Motors, Transformers and Safety Upgrades |
| Standard & Approvals | 248-12, Class RK1 UL Listed File No. E81895, CSA Certified File No. LR29862, Federal Specification WF-1814 (QPL- W-F-1814), RoHS Compliant |
| Amperage Rating | 50 A |
| Body Size | 13/16 in Dia x 3 in L |
| Body Style | Cartridge |
| Class | RK1 |
| Element | Dual |
