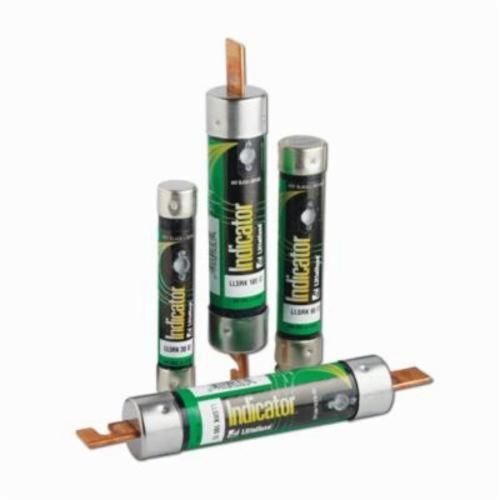

Littelfuse® POWR-GARD® LLSRK009ID Current Limiting Time Delay Fuse, 9 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body

Selected LLSRK175Littelfuse® POWR-GARD® LLSRK200 Current Limiting Time Delay Fuse, 200 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
LLSRK175Littelfuse® POWR-GARD® LLSRK200 Current Limiting Time Delay Fuse, 200 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body

Short Description

The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.

Features

  • POWR-PRO performance
  • IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters
  • This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands
  • Reduce down time - The indicating window of the LLSRK_ID immediately identifies the open fuse, If the window is dark, the fuse has opened, It’s that simple, maintenance personnel can immediately determine that there is an open fuse
  • Reduce fuse inventory - The superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
  • Reduce nuisance opening - Indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
  • 200 kA rms symmetrical at 600 VAC, 20 kA at 300 VDC interrupting rating
  • Blown fuse indicator assembly
  • Granular quartz filling
  • Plated end caps
  • Precision formed short circuit element
  • Fiberglass reinforced pultruded body
  • Elastomeric silicone overload section

Specification

Class
RK1
Minimum Order Qty
1
Order Interval
1
Catalog ID
L-FLLSRK009ID
Standard & Approvals
UL Listed File No. E81895, Standard 248-12, File No. LR29862 CSA Certified, Federal Specification WF-1814 (QPL- W-F-1814), RoHS Compliant
Terminal Type
Ferrule
Voltage Rating
600 VAC/300 VDC
Amperage Rating
9 A
Body Size
13/16 in Dia x 5 in L
Body Style
Cartridge
Interrupt Rating
200/20 kA
Mounting Type
Holder
Type
Current Limiting Slow-Blow
Element
Dual
Material
Fiberglass
Series
LLSRK
