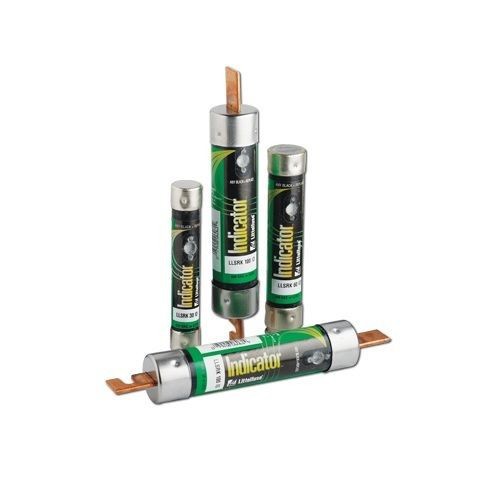

Littelfuse® POWR-GARD® LLSRK015 Current Limiting Time Delay Fuse, 15 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Selected Littelfuse® POWR-GARD® LLSRK015 Current Limiting Time Delay Fuse, 15 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse® POWR-GARD® LLSRK015 Current Limiting Time Delay Fuse, 15 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
SKU: L-FLLSRK015
Manufacturer Part Number: LLSRK015
Documents
Short Description
The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses.
Features
- POWR-PRO performance
- IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters
- This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands
- Reduce down time - The indicating window of the LLSRK_ID immediately identifies the open fuse, If the window is dark, the fuse has opened, It’s that simple, maintenance personnel can immediately determine that there is an open fuse
- Reduce fuse inventory - The superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
- Reduce nuisance opening - Indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
- 200 kA rms symmetrical at 600 VAC, 20 kA at 300 VDC interrupting rating
- Blown fuse indicator assembly
- Granular quartz filling
- Plated end caps
- Precision formed short circuit element
- Fiberglass reinforced pultruded body
- Elastomeric silicone overload section
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Fiberglass |
| Mounting Type | Holder |
| Series | LLSRK |
| Terminal Type | Ferrule |
| Type | Current Limiting Slow-Blow |
| Voltage Rating | 600 VAC/300 VDC |
| Application | All General-Purpose Circuits, Motors, Transformers, Safety Upgrades |
| Standard & Approvals | UL Listed File No. E81895, Standard 248-12, File No. LR29862 CSA Certified, Federal Specification WF-1814 (QPL- W-F-1814), RoHS Compliant |
| Amperage Rating | 15 A |
| Body Size | 13/16 in Dia x 5 in L |
| Body Style | Cartridge |
| Class | RK1 |
| Element | Dual |
