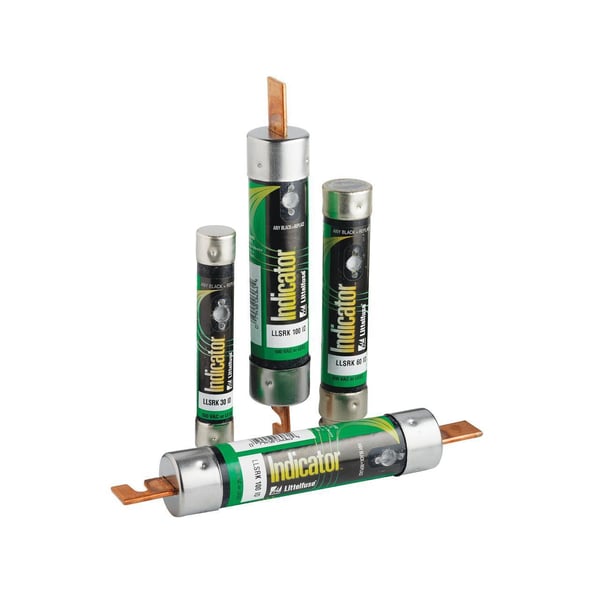

Littelfuse® POWR-GARD® LLSRK050ID Current Limiting Time Delay Fuse, 50 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse® POWR-GARD® LLSRK050ID Current Limiting Time Delay Fuse, 50 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
SKU: L-FLLSRK050ID
Manufacturer Part Number: LLSRK050ID
UPC: 079458039870
Short Description
Features
- POWR-PRO™ performance
- IEC type 2 "no damage" protection to IEC and NEMA type motor starters
- This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands
- Reduce down time the indicating window of the LLSRK_ID immediately identifies the open fuse, if the window is dark, the fuse has opened, It's that simple, maintenance personnel can immediately determine that there is an open fuse
- Reduce fuse inventory the superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
- Reduce nuisance opening - indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Blown fuse indicator assembly
- Granular quartz filling
- Plated end caps
- Precision formed short circuit element
- Fiberglass reinforced pultruded body
- Elastomeric silicone overload section
Specification
| Element | Dual |
|---|---|
| Body Type | Cartridge |
| Interrupt Rating | 200/20 kA |
| Terminal Type | Ferrule |
| Material | Fiberglass |
| Voltage Rating | 600 VAC/300 VDC |
| Series | LLSRK |
| Mounting Type | Holder |
| Amperage Rating | 50 A |
| Class | RK1 |
| Type | Current Limiting |
| Indicating/Non-Indicating | Indicating |
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
