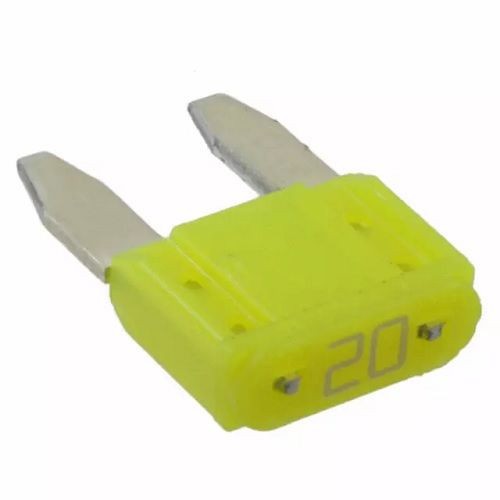

Littelfuse® POWR-GARD® MIN020 MINI® LLSRK Fast Blow Special Purpose Automotive Fuse, 20 A, 32 VAC/VDC, 1 kA Interrupt

Selected Littelfuse® POWR-GARD® MIN020 MINI® LLSRK Fast Blow Special Purpose Automotive Fuse, 20 A, 32 VAC/VDC, 1 kA Interrupt
Littelfuse® POWR-GARD® MIN020 MINI® LLSRK Fast Blow Special Purpose Automotive Fuse, 20 A, 32 VAC/VDC, 1 kA Interrupt

Short Description

The MINI Fuse is quickly becoming the new standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizingless space, and its ability to cope with high temperatures in adverse environments makes the MINI Fuse the recommended choice for protection.

Features

  • 360000 sec minimum at 110%, 0.750 sec minimum and 600 sec maximum at 1.35 0.150 sec minimum and 5 sec maximum at 2 0.080 sec minimum and 0.500 sec maximum at 350%, 0.03 sec minimum and 0.1 sec maximum at 600% opening time

Specification

Interrupt Rating
1 kA
Material
Nylon
Mounting Type
Holder
Amperage Rating
20 A
Catalog ID
L-FMIN020
Class
RK1
Color
Yellow
Depth
3.8 mm
Terminal Type
Blade
Type
Fast Blow
Voltage Rating
32 VAC/VDC
Standard & Approvals
UL 248, SAE J2077, ISO 8820-3, RoHS Compliant
Width
10.9 mm
Speed
Fast Acting
Series
MINI, LLSRK
Order Interval
5
Minimum Order Qty
5
