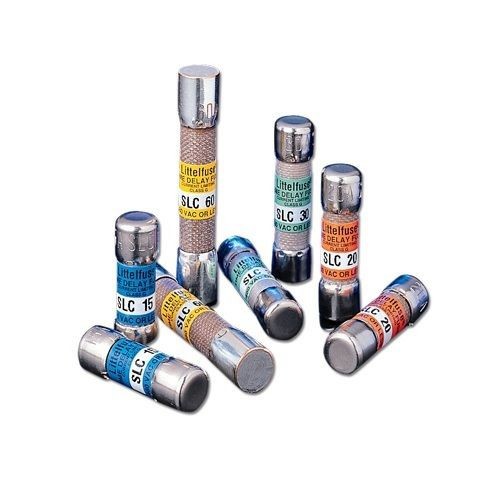

Littelfuse® POWR-GARD® SLC060 Current Limiting Medium Acting Time Delay Fuse, 60 A, 480 VAC, 100 kA Interrupt, G Class, Cartridge Body

Selected Littelfuse® POWR-GARD® SLC060 Current Limiting Medium Acting Time Delay Fuse, 60 A, 480 VAC, 100 kA Interrupt, G Class, Cartridge Body
Littelfuse® POWR-GARD® SLC060 Current Limiting Medium Acting Time Delay Fuse, 60 A, 480 VAC, 100 kA Interrupt, G Class, Cartridge Body

Documents

Short Description

The unique design of Littelfuse’s compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection. The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders. The fuse’s varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings. Class CC fuses are replacing Class G fuses in many new designs. Class CC fuses’ superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits. Littelfuse’s introduction of POWR-PRO® CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend.

Features

  • Current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents
  • Medium time-delay allows fuses to be sized closer to actual equipment requirements no need to greatly oversize to withstand harmless equipment or system surges
  • Medium time-delay may reduce downtime caused by power surges or equipment demands
  • 100 kA rms sym

Specification

Interrupt Rating
100 kA
Mounting Type
Holder
Series
SLC
Terminal Type
Ferrule
Type
Current-Limiting Medium Acting
Voltage Rating
480 VAC
Application
Branch Circuit Protection
Standard & Approvals
UL 248-5, UL File No. E81895, CSA Certified, RoHS Compliant
Amperage Rating
60 A
Body Size
13/32 in Dia x 2-1/4 in L
Body Style
Cartridge
Class
G
