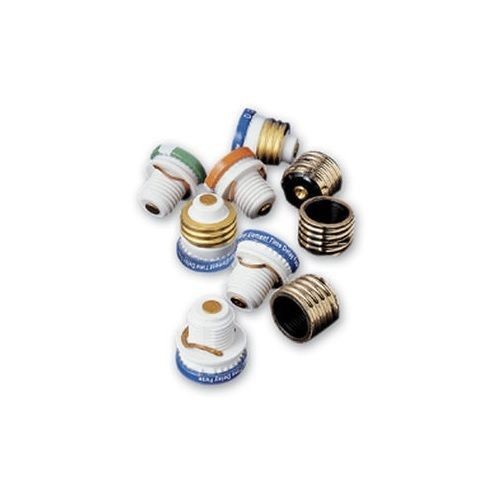

Littelfuse® TOO020 Medium Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA, Round Body
Littelfuse® TOO020 Medium Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA, Round Body
SKU: L-FTOO020
Manufacturer Part Number: TOO020
UPC: 079458430714
Documents
Short Description
Features
- The National Electric Code now permits Edison base fuses to be used only for replacements in existing installations, and then, only when there is no evidence of overfusing or tampering
- All new Edison-based fuse holders must have Type S fuse adapters installed before they are placed in service
- Designed to prevent installation of wrong size fuses, Type S Adapters (SAO series) screw into Edison base fuse holders so they may accept Type S fuses
- Once installed the adapters cannot be removed
- To prevent shunting of open fuses or over-fusing and to reduce nuisance fuse opening, it is recommended that SAO adapters with properly rated SOO series fuses be installed in all Edison base fuse holders
- 10 kA (RMS symmetrical) interrupt rating
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Material | Metal |
| Mounting Type | Threaded |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Body Style | Round |
| Catalog ID | L-FTOO020 |
| Element | Dual |
| Series | TOO |
| Terminal Type | Threaded |
| Type | Medium Time Delay |
| Voltage Rating | 125 VAC |
| Application | General Purpose Circuits and Small Motor Loads |
| Standard & Approvals | UL 248-11, RoHS Compliant |
