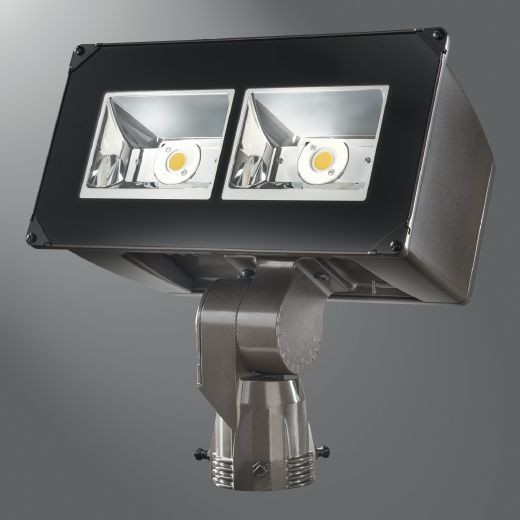

Lumark Outdoor Night Falcon™ NFFLD-C25-S Rectangular Floodlight, (2) LED Lamp, 85 W Fixture, 120 to 277 VAC, Carbon Bronze Housing

Selected NFFLD-C25-SLumark Outdoor Night Falcon™ NFFLD-C25-S Rectangular Floodlight, (2) LED Lamp, 85 W Fixture, 120 to 277 VAC, Carbon Bronze Housing
NFFLD-C25-SLumark Outdoor Night Falcon™ NFFLD-C25-S Rectangular Floodlight, (2) LED Lamp, 85 W Fixture, 120 to 277 VAC, Carbon Bronze Housing

Documents

Short Description

The night Falcon™ LED floodlight luminaire combines high efficiency optics, superior thermal management and energy efficiency in a cost effective solution. The compact, robust design incorporates a separate driver compartment for maximum heat dissipation to insure longevity of both the fixture and the LEDs. The night Falcon™ luminaire uses precision engineered optics delivering superior uniformity and excellent illumination to the targeted application. Typical applications include area lighting for security, building facade lighting, accent and signage lighting in both commercial and industrial applications. The night Falcon™ luminaire is UL/cUL listed for wet locations and is IP66 rated.

Features

  • Die cast aluminum housing, driver compartment and driver door
  • Replaces up to 400 W equivalent metal halide luminaires
  • 6H x 6V NEMA wide distribution, 3H x 3V spot distribution
  • 4 Lumens packages, nominal 10500 to 24000 Lumens
  • Operation temperature range of -40 to 40 deg C
  • 0.708 A at 120 VAC, 0.34 A at 277 VAC amperage rating

Specification

Housing Finish
Carbon Bronze
Housing Material
Die Cast Aluminum
Lamp Type
LED
Light Color
Cool White
Mounting Type
Slipfitter
Number of Lamps
2
Minimum Order Qty
1
Order Interval
1
Average Life
60000 hr
Color Rendering Index (CRI)
70
Color Temperature
4000 K
Enclosure Type
IP66
Series
NFFLD
Type
Rectangular
Voltage Rating
120 to 277 VAC
Application
Security Lighting, Building Facade Lighting, Accent, Signage Lighting in both Commercial and Industrial Applications
Standard & Approvals
ECCN: EAR99NLR, UL/cUL Listed for Wet Locations, DLC Listed, DLC Premium Listed, IESNA LM-79/LM-80, ISD Certified
Includes
Lamp
Dimensions
22-3/4 in L x 18-1/4 in W x 9-1/2 in H
Catalog ID
LUMNFFLD-C25-S
Amperage Rating
0.34/0.708 A
Lumens
10530 Lumens
Lens Type
Clear Glass Tempered
Fixture Wattage
85 W
