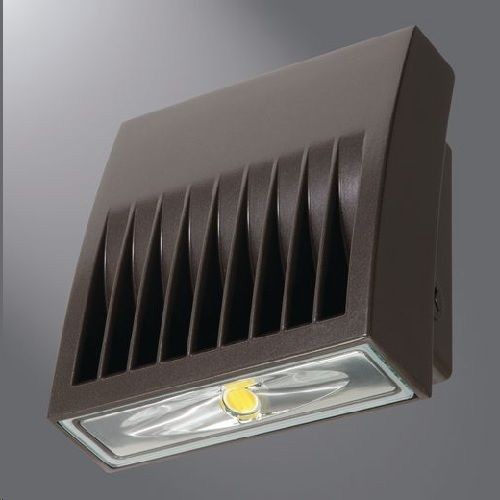

Lumark Outdoor Crosstour™ XTOR4B Medium Door Outdoor Wallpack, (1) LED Lamp, 38 W Fixture, 120 to 277 VAC, Carbon Bronze Housing
Lumark Outdoor Crosstour™ XTOR4B Medium Door Outdoor Wallpack, (1) LED Lamp, 38 W Fixture, 120 to 277 VAC, Carbon Bronze Housing
SKU: LUMXTOR4B
Manufacturer Part Number: XTOR4B
UPC: 080083778003
Documents
Short Description
Features
- Patented, slim, low profile LED design
- Wall, surface, post, bollard, low level, inverted, floodlight mounting
- Die cast aluminum, hinged, removable door and back box
- Secure lock hinge and single point closure
- Mounts to a variety of junction boxes or conduit entries
- Silicone sealed optical LED lens
- 0.34 A at 120 VAC, 0.17 A at 208, 0.17 A at 240 VAC, 0.15 A at 277 VAC
Specification
| Housing Finish | Carbon Bronze |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lens Type | Tempered Glass |
| Light Color | Bright White |
| Mounting Type | Wall |
| Voltage Rating | 120 to 277 VAC |
| Application | Lighting, Wall, Surface, Inverted Mount For Facade, Canopy Illumination, Post, Bollard, Low Level Pathway Illumination Including Stairs, Building Entrances, Multi-Use Facilities, Apartment Buildings, Institutions, Schools, Stairways, Loading Docks and Wet Locations |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, DLC Listed, DLC Premium Listed, UL/CUL Listed, ECCN:EAR99NLR, NOM Compliant, ADA Compliant, Title 24 Compliant |
| Amperage Rating | 0.15/0.34 A |
| Dimensions | 7.25 in L x 5.188 in W x 8.188 in H |
| Average Life | 72000 |
| Ballast Type | Integral LED Electronic |
| Color Rendering Index (CRI) | 70 |
| Color Temperature | 5000 |
| Enclosure Type | IP66 |
| Fixture Wattage | 38 W |
| Includes | Lamp |
| Type | Medium Door |
| Series | XTOR4B |
| Lumens | 4269 Lumens |
