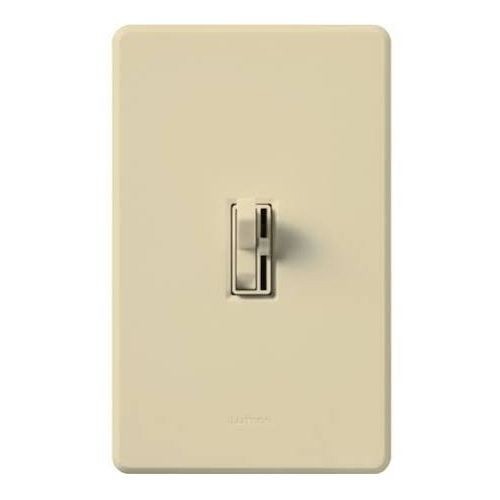

Ariadni® AY-103P-IV 3-Way Traditional Style Dimmer Switch, 120 VAC, 1 Poles, Side Slide On/Off Operation, Ivory
Ariadni® AY-103P-IV 3-Way Traditional Style Dimmer Switch, 120 VAC, 1 Poles, Side Slide On/Off Operation, Ivory
SKU: LUTAY-103P-IV
Manufacturer Part Number: AY-103P-IV
UPC: 027557670524
Documents
Short Description
Features
- Features toggle switch and small slide dimmer
- Shallow 1-inch deep back cover for easy installation
- Matching Fassada® gloss wallplates available for 1-gang to 3-gang sizes
- Power failure memory
- Superior RFI suppression
- Lutron® controls are rated at 120 VAC, 60 Hz unless otherwise noted
- Matches existing switches
- Toggle-style switch turns light on to level set by slider
- Slide adjusts light to your favorite level
- 1000 W preset dimmers have voltage compensation which maintains stable light levels, despite line voltage variations
- 100 percent factory tested
- Toggle turns on/off
- Slide up to brighten, down to dim
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | Incandescent/Halogen |
| Material | Plastic |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Ivory |
| Start Type | Preset |
| Temperature Rating | 0 to 40 deg C |
| Terminal Type | Screw |
| Type | 3-Way Traditional Style |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL Listed, CSA Certified, NOM Certified |
| Application | For commercial and residential applications |
| Power Rating | 1000 W |
| Dimensions | 4.6 in H x 2.86 in W x 0.23 in D |
| Control | Toggle |
| Catalog ID | LUTAY-103P-IV |
| Video | https://www.youtube.com/watch?v=sMB7LYvhzEM |
| Operation Mode | Side Slider On/Off |
| Series | AY-103P |
