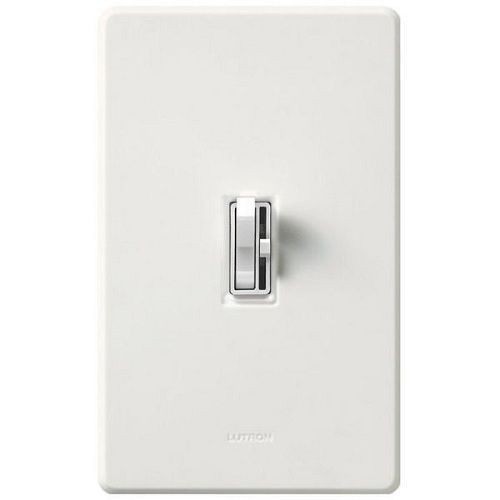

Ariadni® AYCL-153P-WH Traditional 3-Way Circuit Dimmer Switch, 120 VAC, 1 Pole, White

Ariadni® AYCL-153P-WH Traditional 3-Way Circuit Dimmer Switch, 120 VAC, 1 Pole, White
SKU: LUTAYCL-153P-WH
Manufacturer Part Number: AYCL-153P-WH
UPC: 027557825948
Documents
Short Description
Features
- Features toggle switch and small slide dimmer
- Shallow 1-inch deep back cover for easy installation
- Matching Fassada® gloss wallplates available for 1-gang to 3-gang sizes
- Power failure memory
- Superior RFI suppression
- Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted
- The toggle style switch automatically returns to your favorite pre-selected light level and the C-L models with HED™ technology improve dimming performance of dimmable CFLs and LEDs compared to standard dimmers
- 150 W for incandescent Load, 600 W for CFL/LED load
- C-L™ models for dimmable CFL and LED bulbs are available; these models have HED™ technology, which improves dimming performance of these bulbs
- Wallplates not included, order separately
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | Incandescent/Halogen/CFL/LED |
| Material | Plastic |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | LUTAYCL-153P-WH |
| Color | White |
| Control | Toggle |
| Dimensions | 4.6 in H x 2.86 in W x 0.23 in D |
| Power Rating | 150/600 W |
| Series | Traditional |
| Start Type | Preset |
| Temperature Rating | 0 to 40 deg C |
| Terminal Type | Screw/Push-In |
| Type | 3-Way Circuit |
| Voltage Rating | 120 VAC |
| Application | For commercial and residential applications |
| Standard & Approvals | UL Listed, CSA Certified |
