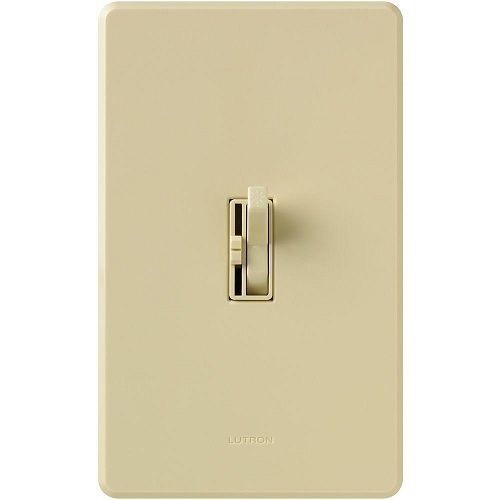

Ariadni® Toggler® AYFSQ-F-IV 1-Pole 3-Way Traditional Fan Control Switch, 120 VAC, 1.5 A, 3-Speed/Quiet Operational Mode, Ivory

Selected AYFSQ-F-IVAriadni® Toggler® AYFSQ-F-IV 1-Pole 3-Way Traditional Fan Control Switch, 120 VAC, 1.5 A, 3-Speed/Quiet Operational Mode, Ivory
AYFSQ-F-IVAriadni® Toggler® AYFSQ-F-IV 1-Pole 3-Way Traditional Fan Control Switch, 120 VAC, 1.5 A, 3-Speed/Quiet Operational Mode, Ivory

Documents

Short Description

Designed to match your existing traditional switches, this fan control provides 3-speed control of paddle fans for enhanced comfort and convenience. Easily turn the fan on and off with the toggle switch. While the fan is on, use the sleek slide control to adjust the fan speed.

Features

  • For use with one ceiling paddle fans
  • Wallplates not included
  • Features toggle switch for on/off and a small slide to adjust fan speed
  • Offers 3 quiet fan speeds for increased comfort
  • For use with 1 ceiling fan
  • Power failure memory
  • Superior RFI suppression
  • Toggle turns fans on/off
  • Slide up to increase speed, down to decrease
  • 3 quiet fan speeds designed to prevent motor hum
  • No derating required if ganged
  • Traditional wallplate opening
  • For multi location use

Specification

Mounting
Wall
Operational Mode
Quiet 3-Speed
Minimum Order Qty
1
Order Interval
1
Amperage Rating
1.5 A
Catalog ID
LUTAYFSQ-F-IV
Color
Ivory
Dimensions
4.6 in H x 2.86 in W x 0.23 in D
Environmental Conditions
0 to 90% Non-Condensing Relative Humidity
Finish
Gloss
Power Rating
300 W
Series
AYFSQ-F
Temperature Rating
0 to 40 deg C
Terminal Type
Screw
Type
1-Pole 3-Way Traditional
Voltage Rating
120 VAC
Application
For commercial and residential applications
Standard & Approvals
UL, cUL Listed, CSA Certified
