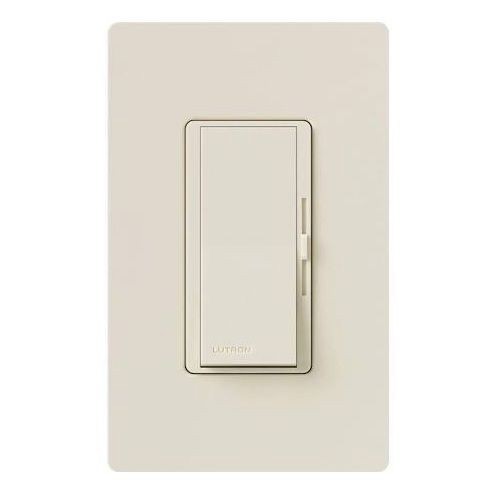

Diva® DV-603P-LA 3-Way Designer Style Dimmer Switch With Locator Light, 120 VAC, 1 Poles, On/Off Operation, Light Almond
Diva® DV-603P-LA 3-Way Designer Style Dimmer Switch With Locator Light, 120 VAC, 1 Poles, On/Off Operation, Light Almond
SKU: LUTDV-603P-LA
Manufacturer Part Number: DV-603P-LA-CSA
UPC: 027557366304
Features
- Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
- Full family of products for most lighting sources
- Dimmers feature built-in soft-glow nightlight
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Locator light shines through paddle on select lighter colored models
- Slide up to brighten; down to dim
- Square Law Dimming
- Power failure memory
- Electrostatic discharge tested
- RFI suppression
- Captive linear slider
- Mechanical air-gap switch to disconnect load power
- Gloss finish
- Wall Box mounting
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | Incandescent/Halogen |
| Material | Plastic |
| Mounting Type | Surface |
| Power Rating | 600 W |
| Start Type | Preset |
| Temperature Rating | 0 to 40 deg C |
| Terminal Type | Screw |
| Type | Designer Style |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL Listed, CSA, NOM Certified |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Color | Light Almond |
| Control | Paddle ON/OFF |
| Operation Mode | 3-Way |
| Application | Residential and Indoor |
