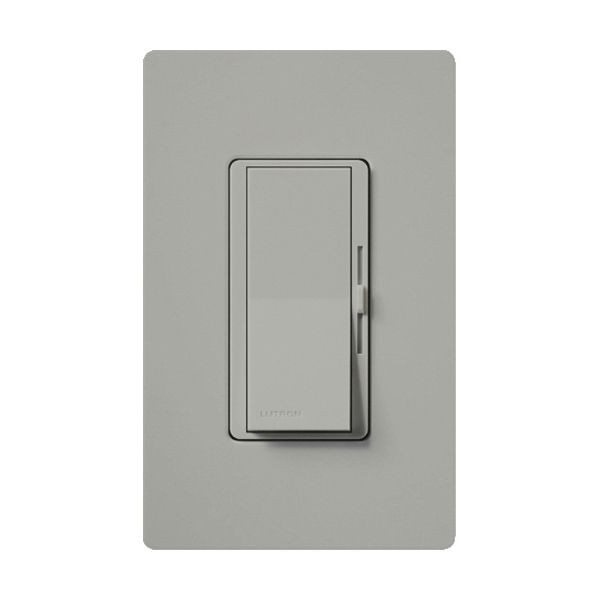

Diva C.L® DVCL-153P-GR 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Gray

Selected DVCL-153P-GRDiva C.L® DVCL-153P-GR 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Gray
DVCL-153P-GRDiva C.L® DVCL-153P-GR 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Gray

Documents

Short Description

A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The paddle switch returns the lights to your favorite level.

Features

  • Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
  • Full family of products for most lighting sources
  • Dimmers feature built-in soft glow nightlight
  • Uses standard 1-pole and 3-way wiring for easy installation in any home
  • Locator light shines through paddle on select lighter colored models
  • Slide up to brighten, down to dim

Specification

Frequency Rating
60 Hz
Material
Plastic
Mounting Type
Wall
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Color
Gray
Voltage Rating
120 VAC
Standard & Approvals
UL 1472, CSA C22.2 File No. 184.1, NOM Certified
Application
Indoor, Commercial and Residential Applications
Type
3-Way Designer Style
Terminal Type
Push-In Wire/Screw
Temperature Rating
0 to 40 deg C
Start Type
Pre-Set
Series
DVCL-153P
Power Rating
600 W
Dimensions
4.69 in H x 2.94 in W x 0.3 in D
Catalog ID
LUTDVCL-153P-GR
Operation Mode
Slide-to-Bright/Dim
Lamp Type
CFL/Halogen/Incandescent/LED
Control
Paddle ON/OFF
