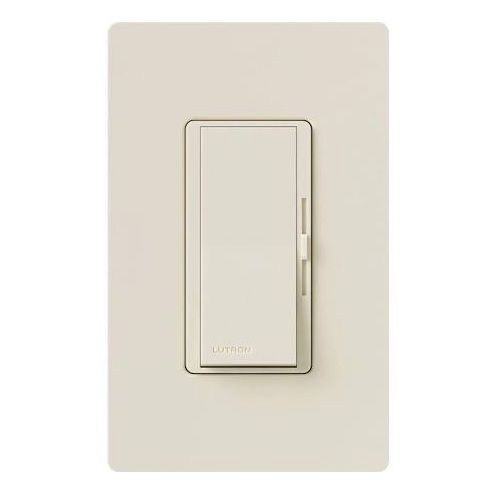

Diva C.L® DVCL-153P-LA 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Light Almond

Selected DVCL-153P-LADiva C.L® DVCL-153P-LA 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Light Almond
DVCL-153P-LADiva C.L® DVCL-153P-LA 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Light Almond

Documents

Short Description

C.L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs. C.L dimmers enable you to future-proof your lighting control for new bulbs.

Features

  • Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
  • HED™ technology: advanced LutronR dimming circuitry designed for compatibility with most high efficacy light bulbs
  • Dimmable compact fluorescent (CFL) with integrated ballast
  • Dimmable LED with integrated driver
  • Low-end adjustment to accommodate a wide range of bulbs
  • 100% factory tested
  • Power failure memory
  • Captive linear slider
  • Electrostatic discharge tested
  • Mechanical air-gap switch to disconnect load power
  • Boxed packaging
  • Gloss finish
  • Wall Box mounting

Specification

Material
Plastic
Mounting Type
Surface
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Start Type
Preset
Terminal Type
Screw
Type
Designer Style
Voltage Rating
120 VAC
Application
Indoor
Control
Paddle ON/OFF
Frequency Rating
60 Hz
Temperature Rating
0 to 40 deg C
Power Rating
150 W
Dimensions
4.69 in H x 2.94 in W x 0.3 in D
Color
Light Almond
Catalog ID
LUTDVCL-153P-LA
Operation Mode
3-Way
Lamp Type
CFL/LED
Standard & Approvals
UL1472, CSA C22.2 184.1, NOM Certified
