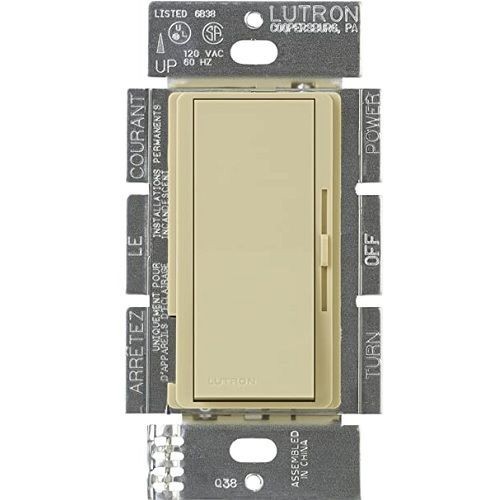

Diva® DVSTV-IV 3-Way Dimmer Switch With Switching Box, 120 to 277 VAC, 8 A, 50 mA, 1 Poles, On/Off Operation, Ivory
Diva® DVSTV-IV 3-Way Dimmer Switch With Switching Box, 120 to 277 VAC, 8 A, 50 mA, 1 Poles, On/Off Operation, Ivory
SKU: LUTDVSTV-IV
Manufacturer Part Number: DVSTV-IV
UPC: 784276099608
Documents
Short Description
Features
- 0-10 V control link controls third party fixtures
- Patented switching technology extends product lifetime
- High-end and low end trim user adjustable for optimal performance
- Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver loads of 8 A steady state current
- Adjustable high-end and low end trim for optimal dimming performance
- Power failure memory should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored
- Captive linear slider
- Precise color matching
- For indoor use only
- Gloss finish
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Insulation | Class 1 |
| Lamp Type | Fluorescent/LED |
| Material | Plastic |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operation Mode | On/Off |
| Series | DVSTV |
| Start Type | Preset |
| Temperature Rating | 32 to 104 deg F |
| Terminal Type | Screw |
| Type | 3-Way Designer Style |
| Voltage Rating | 120 to 277 VAC |
| Application | For applications requiring 0-10 V fixtures such as private offices and conference rooms |
| Standard & Approvals | UL Listed, CSA Certified, NOM Certified |
| Amperage Rating | 8 A, 50 mA |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Color | Ivory |
| Control | Paddle |
| Enclosure Type | NEMA 4/10 |
