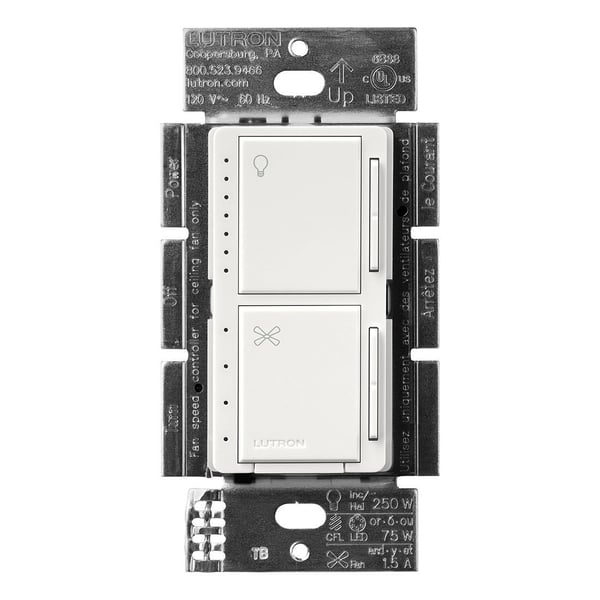

Lutron® Maestro® C.L® MACL-LFQ-WH 1-Pole Fan/Light Control, 120 VAC, 1.5 A, 4-Speed/Quiet Operational Mode, White
Lutron® Maestro® C.L® MACL-LFQ-WH 1-Pole Fan/Light Control, 120 VAC, 1.5 A, 4-Speed/Quiet Operational Mode, White
SKU: LUTMACL-LFQ-WH
Manufacturer Part Number: MACL-LFQ-WH
UPC: 784276239523
Features
- Tap ON to preset light level/fan speed, tap OFF
- Tap twice for full ON
- Touch rocker to adjust light level/fan speed
- Four fan speeds plus off
- Indicator lights display light level and fan speed
- No canopy module required
- Requires separate wires for fan and light
- No neutral wire required
- Low end adjustment to accommodate a wide range of bulbs
- Front Accessible Service Switch (FASS™) for fixture bulb replacement
- Prevents tripping of AFCI breakers
- 100% factory tested
- Light pull chain off detection, lamp failure detection, short circuit detection/protection
Specification
| Mounting | Wall |
|---|---|
| Operational Mode | 4-Speed/Quiet |
| Temperature Rating | 32 to 104 deg F |
| Type | 1-Pole |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL 1917, UL 1472, CSA C22.2 File No. 184.1, NOM Certified, NEMA SSL7-2015 |
| Amperage Rating | 1.5 A |
| Color | White |
| Finish | Gloss |
| Application | Indoor Applications |
| Series | MACL-LFQ |
| Power Rating | 75/250 W |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 1-9/16 in D |
| Environmental Conditions | 0 to 95% Non-Condensing Relative Humidity |
