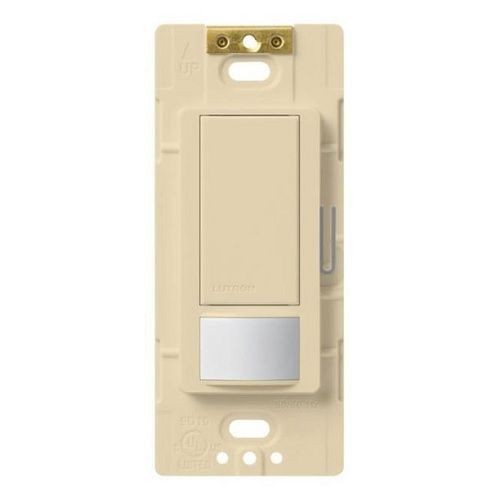

Lutron® MS-OPS5M-IV Occupancy Sensing Switch, For Use With Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent, 5 A at 120/277 VAC, 1 Pole, Ivory

Selected Lutron® MS-OPS5M-IV Occupancy Sensing Switch, For Use With Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent, 5 A at 120/277 VAC, 1 Pole, Ivory
Lutron® MS-OPS5M-IV Occupancy Sensing Switch, For Use With Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent, 5 A at 120/277 VAC, 1 Pole, Ivory

Short Description

The Lutron® Maestro® Occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.

Features

  • Passive infrared sensors with exclusive Lutron® XCT™ Technology for fine motion detection
  • Occupancy version can be set to auto-on/auto-off or manual on/auto-off
  • Vacancy version available to meet CA Title 24 requirements
  • Occupancy sensing switch loads incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • 3 way/multi location
  • All lighting loads
  • Crush/tamper resistant lens
  • Smart ambient light detection
  • Adaptive switching algorithm for extended relay life
  • 32 to 104 deg F operating temperature, 0 - 90% humidity, non-condensing
  • XCT™ Technology for fine motion detection
  • 1/5/15/30 min timeout

Specification

Series
MS-OPS5M
Specifications
5 A at 120/277 VAC, 1-Pole
Suitable For Use With
Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent
Application
For small space (storage room, closet) and Kitchen
Standard & Approvals
UL Listed, NOM Certified
Dimensions
4-11/16 in H x 2-15/16 in W x 1-1/8 in D
Color
Ivory
Includes
Wire Nuts
