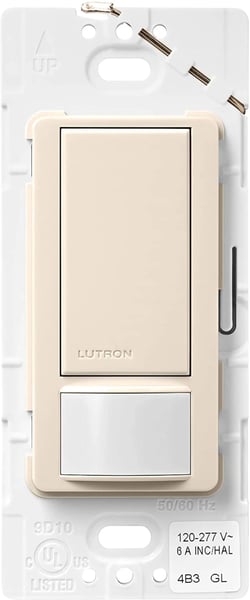

Lutron® MS-OPS6M2-DV-LA Maestro® 1-Pole Multi-Location Occupancy Sensing Switch, 120 to 277 V AC, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, Wall Mounting

Lutron® MS-OPS6M2-DV-LA Maestro® 1-Pole Multi-Location Occupancy Sensing Switch, 120 to 277 V AC, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, Wall Mounting
SKU: LUTMS-OPS6M2-DV-LA
Manufacturer Part Number: MS-OPS6M2-DV-LA
UPC: 027557984188
Documents
Short Description
Features
- Rated to work with up to 6A lighting, 3A Fan or 3A combined Light/Fan, 120-277V
- Wire-Lead installation, Ground or Neutral Required
- Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS), Compatible with one existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
Specification
| Sensor Type | Passive Infrared |
|---|---|
| Response Frequency | 50/60 Hz |
| Enclosure Type | NEMA WD7 |
| Mounting Type | Wall |
| Coverage | 400 sq-ft Minor, 900 sq-ft Major |
| Amperage Rating | 6 A |
| Viewing Angle | 180 deg |
| Lamp Type | ELV/Fluorescent/Halogen/Incandescent/LED/MLV |
| Temperature Rating | 32 to 104 deg F |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 1-1/8 in D |
| Control Output | Manual On/Automatic Off/Automatic On/Automatic Off |
| Time Delay | 10 s |
| Power Rating | 600/720 W |
| Voltage Rating | 120 to 277 V AC |
| Connection Type | Ground |
| Color | Light Almond |
| Series | Maestro® |
| Type | 1-Pole Multi-Location |
