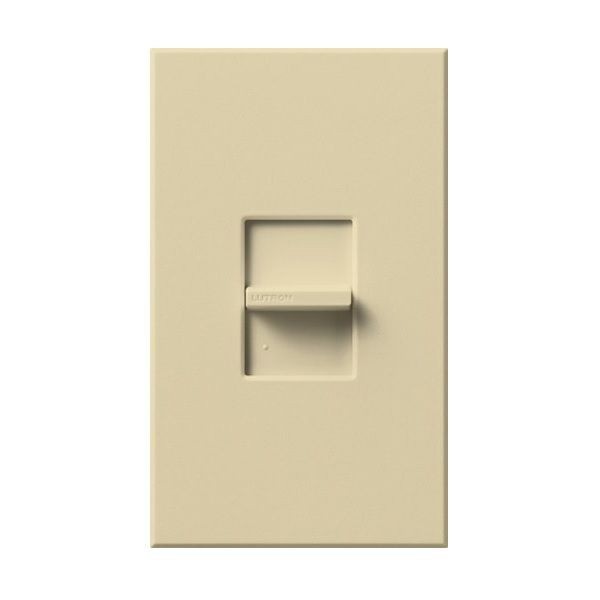

Lutron® Nova-T® NTSTV-DV-IV Small Control Slide-to-Off Dimmer, 120 VAC, 8/30 mA, 1 Poles, Ivory
Lutron® Nova-T® NTSTV-DV-IV Small Control Slide-to-Off Dimmer, 120 VAC, 8/30 mA, 1 Poles, Ivory
SKU: LUTNTSTV-DV-IV
Manufacturer Part Number: NTSTV-DV-IV
UPC: 784276071932
Short Description
Features
- 0 to 10 VDC dimmers for electronic ballasts or LED drivers
- Classic thin-profile linear-slide dimmers
- Intuitive operation, easy to use, multi-gang alignment for quick and easy installation
- Enclosed heat sink for aesthetically pleasing appearance
- Full family of products for most lighting sources, plus matching accessories and wallplates
- Electrostatic discharge tested, precise color matching
- Power-failure memory, superior RFI suppression
- Captive linear slider, accessible air-gap switch
- Heavy-duty components for surge protection and long product life
- 100% factory tested
- Power pack not required for loads up to 8 A, may use Lutron power pack (model PP-DV or PP347H) for higher load current applications or for Class 2 installations
- Control has a high and low end trim to adjust the 0 to 10 VDC output for optimal dimming performance
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | Incandescent/Fluorescent/LED |
| Mounting Type | Wallbox |
| Number Of Poles | 1 |
| Temperature Rating | 32 to 104 deg F |
| Terminal Type | Screw |
| Type | Small Control |
| Voltage Rating | 120 VAC |
| Application | For Residential/Commercial Applications |
| Standard & Approvals | CSA Certified, UL Listed |
| Amperage Rating | 8/30 mA |
| Dimensions | 2.75 in W x 0.3 in D x 4.56 in H |
| Color | Ivory |
| Control | Air-Gap Switch |
