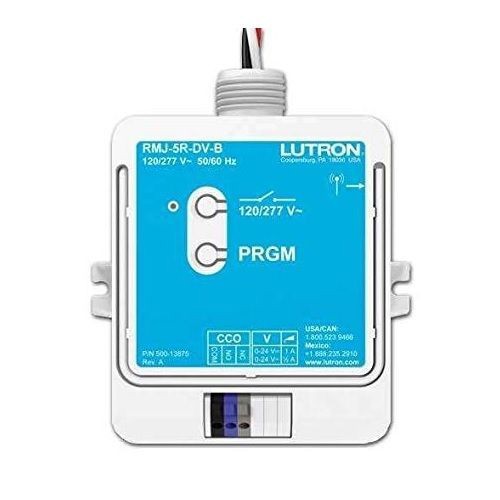

Lutron® PowPak™ Energi TriPak™ Wireless Relay Module, 120/277 VAC, 5 A, Surface Mount

Selected Lutron® PowPak™ Energi TriPak™ Wireless Relay Module, 120/277 VAC, 5 A, Surface Mount
Lutron® PowPak™ Energi TriPak™ Wireless Relay Module, 120/277 VAC, 5 A, Surface Mount

Short Description

The PowPak™ relay module is a radio frequency (RF) device capable of controlling up to 5 A of general purpose load based on input from Pico® controls and radio Powr Savr™ occupancy and daylight sensors. An optional, low voltage dry contact closure output is available to communicate occupancy status to 3rd-party systems such as HVAC controllers. Communication with RF input devices, such as Pico® controls and Radio Powr Savr™ sensors, is accomplished using Lutron clear Connect™ RF Technology.

Features

  • Capable of switching 5 A of general purpose loads
  • Optional low voltage dry contact closure output provides integration to building management systems, HVAC, VAV and more
  • Receives wireless inputs from up to nine Pico® controls, six radio Powr Savr™ occupancy/vacancy sensors, and one radio Powr Savr™ daylight sensor
  • Operates using clear Connect™ RF technology for reliable wireless communication
  • Mounts to a junction box through a standard half-inch (NPT trade size) knockout
  • RF range is 30 ft
  • 1/6 hp at 120 VAC, 1/3 hp at 277 VAC motor rating, 431 MHz to 437 MHz radio frequency, ELV/FL/incandescent/MLV loads
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NEC® 2011 300.22(C)(3)

Specification

Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Temperature Rating
0 to 55 deg C
Voltage Rating
120/277 VAC
Amperage Rating
5 A
Humidity
0 to 90%
Standard & Approvals
UL Listed, UL 2043 Plenum Rated, FCC approved, CSA and IC, COFETEL, NOM Certified, NEC® 2011 300.22(C)(3)
Application
For indoor use
Series
Energi TriPak™
Dimensions
3.94 in L x 2.82 in W x 1.25 in H
Catalog ID
LUTRMJ-5R-DV-B
