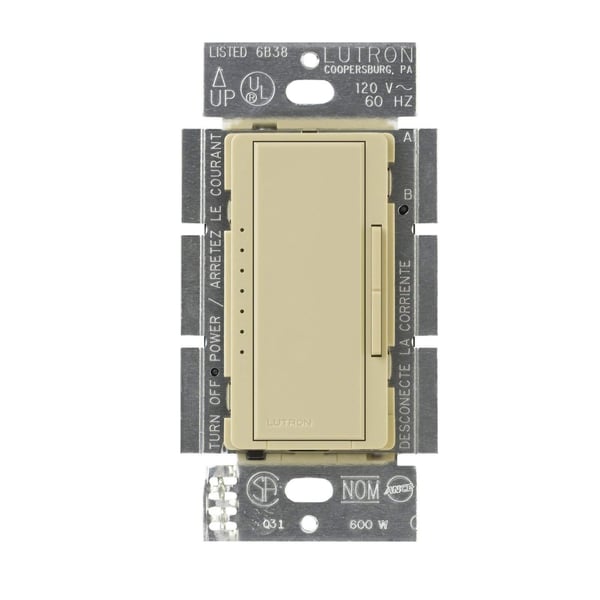

Maestro® MA-600-IV Multi-Location Digital Fade Dimmer Switch, 120 VAC, 1 Poles, On/Off Operation, Ivory

Selected Maestro® MA-600-IV Multi-Location Digital Fade Dimmer Switch, 120 VAC, 1 Poles, On/Off Operation, Ivory
Maestro® MA-600-IV Multi-Location Digital Fade Dimmer Switch, 120 VAC, 1 Poles, On/Off Operation, Ivory

Short Description

The Maestro dimmer provides an easy-to-operate tap switch that turns lights on/off to your favorite light level. Use the rocker dimmer to adjust lights manually. The delayed fade-to-off feature gives you 10-60 seconds to leave the room. Combine with Maestro companion dimmers to control a single light from up to 10 locations.

Features

  • True multi location dimming from every location
  • Tap on to favorite level, tap off, tap twice for full on
  • Touch rocker to adjust light level
  • LEDs indicate light level and glow softly in the dark as a locator light
  • Delayed off provides light as you exit the room
  • Line frequency compensation maintains stable light levels, despite power line frequency and voltage variations
  • Programming allows customized functions
  • Mechanical air-gap to disconnect load power
  • 100 percent factory tested
  • Coordinating Claro®, Satin Colors® and stainless steel wallplates only available separately
  • Gloss finish
  • Maestro® offers a full range of designer light controls, fan controls, sensors and timers that allow you to adjust your lights and fans from anywhere in the room and even outside your home
  • Dimmers offer customizable delayed fade-to-off, which lets you leave a room before the lights go out
  • LEDs glow softly in the dark for easy dimmer location and to show preset light level when lights are off
  • Multi-location dimming compatible with 3 way wiring for easy installation and retrofit
  • Add companion dimmers to dim from up to 10 locations
  • Power failure memory
  • Superior suppression of interference with radio and TV

Specification

Frequency Rating
60 Hz
Lamp Type
Halogen/Incandescent
Material
Plastic
Mounting Type
Wall
Number Of Poles
1
Operation Mode
On/Off
Power Rating
600 W
Series
MA-600
Start Type
Pre-Set
Temperature Rating
0 to 40 deg C
Type
Multi-Location
Voltage Rating
120 VAC
Application
For residential and indoor applications
Standard & Approvals
UL, cUL Listed, NOM Certified, CSA Certified, IEC 801-2 ANSI/IEEE C62.41C Approved
Dimensions
4.69 in H x 2.94 in W x 0.3 in D
Color
Ivory
Control
Tap
