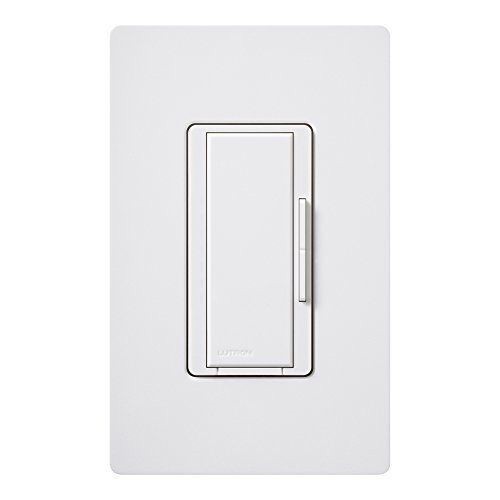

Maestro® MA-AFQ4-WH Designer Companion Fan Control, 120 VAC, 4 A, Plastic, White

Selected Maestro® MA-AFQ4-WH Designer Companion Fan Control, 120 VAC, 4 A, Plastic, White
Maestro® MA-AFQ4-WH Designer Companion Fan Control, 120 VAC, 4 A, Plastic, White

Documents

Short Description

Maestro controls allow you to change fan speed with the touch of a button. Control up to 4 fans from a single Maestro fan control. Maestro fan/light controls work with virtually all existing wiring and coordinate with the entire family of Maestro dimmers, switches and accessories.

Features

  • Maestro® offers a full-range of designer controls that allow you to adjust your fans from anywhere in the room
  • Power-failure memory - Maestro® remembers your settings even after a power interruption
  • Superior suppression of interference with radio and TV
  • Adjust fan speed from up to 3 locations
  • Works with virtually all existing wiring
  • For use with multi-location control, use up to two companion fan controls with one Maestro® digital fancontrol
  • No derating required if ganged

Specification

Material
Plastic
Minimum Order Qty
1
Order Interval
1
Color
White
Dimensions
4.69 in H x 2.94 in W
Environmental Conditions
0 to 90% Non-Condensing Relative Humidity
Finish
Gloss
Temperature Rating
32 to 104 deg F
Terminal Type
Push-In/Screw
Type
Designer
Voltage Rating
120 VAC
Application
For commercial and residential applications
Amperage Rating
4 A
Mounting
Wall Box
Standard & Approvals
cUL, UL Listed, CSA Certified
Catalog ID
LUTMA-AFQ4-WH
