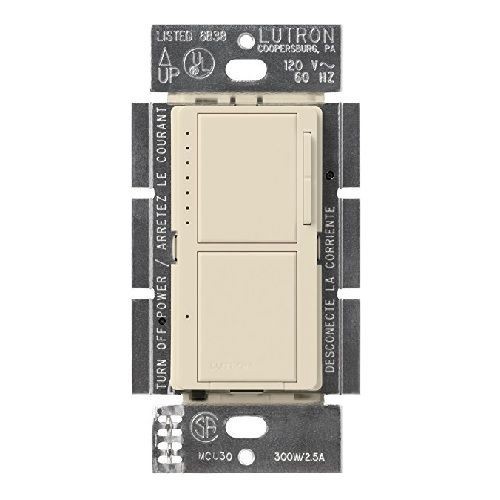

Maestro® MA-L3S25-LA Dual Digital Fade Dimmer, 120 VAC, 2.5 A, 1 Poles, On/Off Operation, Light Almond

Selected Maestro® MA-L3S25-LA Dual Digital Fade Dimmer, 120 VAC, 2.5 A, 1 Poles, On/Off Operation, Light Almond
Maestro® MA-L3S25-LA Dual Digital Fade Dimmer, 120 VAC, 2.5 A, 1 Poles, On/Off Operation, Light Almond

Documents

Short Description

The Maestro dimmer provides an easy-to-operate tap switch that turns lights on/off to your favorite light level. Use the rocker dimmer to adjust lights manually. The delayed fade-to-off feature gives you 10 to 60 sec to leave the room. Combine with Maestro companion dimmers to control a single light from up to 10 locations.

Features

  • True multi-location dimming from every location
  • LEDs indicate light level and glow softly in the dark
  • Delayed off provides light as you exit the room
  • Line frequency compensation maintains stable light levels despite power line frequency and voltage variations
  • Programming allows customized functions

Specification

Frequency Rating
60 Hz
Lamp Type
Incandescent/Halogen
Material
Plastic
Mounting Type
Wall
Number of Lamps
2
Number Of Poles
1
Operation Mode
On/Off
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=7miLIVFYBgA
Amperage Rating
2.5 A
Catalog ID
LUTMA-L3S25-LA
Color
Light Almond
Control
Tap
Dimensions
4.69 in H x 2.94 in W x 0.31 in D
Power Rating
300 W
Temperature Rating
0 to 40 deg C
Terminal Type
Push-In/Screw
Type
Dual
Voltage Rating
120 VAC
Application
Indoor
Standard & Approvals
cUL, UL Listed, CSA, NOM Certified
