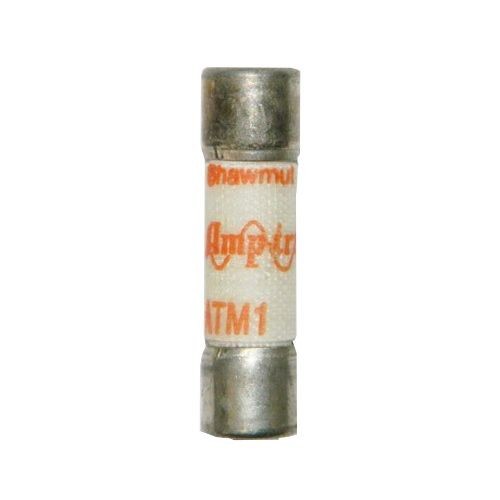

Mersen Amp-Trap® ATM12 Low Voltage Fast Acting Fuse, 12 A, 600 VAC/VDC, 100 kA, Class Midget, Cylindrical Body

Selected Mersen Amp-Trap® ATM12 Low Voltage Fast Acting Fuse, 12 A, 600 VAC/VDC, 100 kA, Class Midget, Cylindrical Body
Mersen Amp-Trap® ATM12 Low Voltage Fast Acting Fuse, 12 A, 600 VAC/VDC, 100 kA, Class Midget, Cylindrical Body

Documents

Short Description

Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).

Features

  • Extended ratings for special protection of capacitors and circuits with high inrush currents
  • 600 VDC ratings for a wide variety of applications including photovoltaic and solar applications
  • Tin-plated Copper contact
  • Can be used with UltraSafe™ fuse holders

Specification

Interrupt Rating
100 kA
Material
GMG
Mounting Type
Clip
Response Time
44 sec
Series
ATM
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
600 VAC/VDC
Application
For supplemental protection of small motors and transformers
Standard & Approvals
UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Class
Midget
Element
Single
Amperage Rating
12 A
