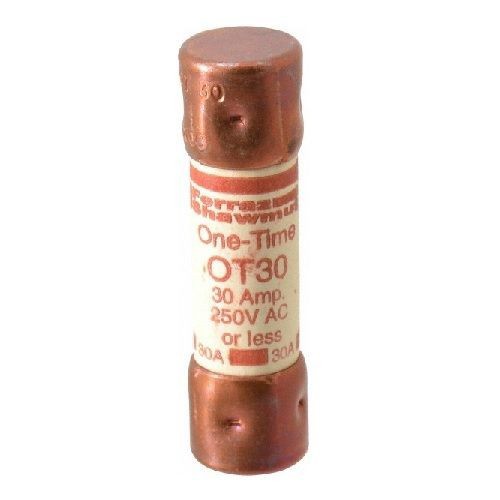

Mersen OT30 OT Series Fast Acting One-Time Fuse, 30 A, 250 VAC/VDC, 50/20 kA Interrupt, Class: K5, Cylindrical Body

Selected Mersen OT30 OT Series Fast Acting One-Time Fuse, 30 A, 250 VAC/VDC, 50/20 kA Interrupt, Class: K5, Cylindrical Body
Mersen OT30 OT Series Fast Acting One-Time Fuse, 30 A, 250 VAC/VDC, 50/20 kA Interrupt, Class: K5, Cylindrical Body

Documents

Short Description

One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value
  • Versatile
  • Lowest cost protection for circuits serving non-inductive loads
  • North American power fuses
  • 50 kA at 250 VAC, 20 kA at 250 VDC interrupt rating

Specification

Interrupt Rating
50/20 kA
Material
Paper
Mounting Type
Clip
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Body Size
9/16 in Dia x 2 in L
Body Style
Cylindrical
Catalog ID
GOUOT30
Class
K5
Series
OT
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
250 VAC/VDC
Application
Feeders, Resistive Heating, Residential and Small Commercial Installations
Standard & Approvals
UL 248-9 File E2137, DC UL 248, CSA C22.2 No. 248.9, RoHS Complaint
