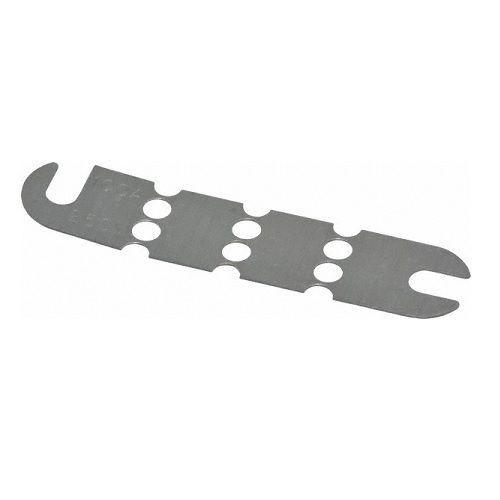

Mersen RLS20 Renewable Fuse Link, 600 VAC, 20 A, For Use With RF/RFS General Purpose Class H Fuse, Die Cast Zinc
Mersen RLS20 Renewable Fuse Link, 600 VAC, 20 A, For Use With RF/RFS General Purpose Class H Fuse, Die Cast Zinc
SKU: GOURLS20
Manufacturer Part Number: RLS20
UPC: 068938730796
Documents
Features
- Precision die-cut renewal links renew quickly and give repeatable performance
- Knurled bushings for ease-of disassembly
- Rugged construction for maximum service life
- Also for use with North American Power Fuses
- RF general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes
Specification
| Material | Die-Cut Zinc |
|---|---|
| Mounting Type | Ferrule |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL 248-7, File No. E2137; CSA C22.2, No. 248.7 |
| Suitable For Use With | RF and RFS Series Class H Renewable Fuses, North American Power Fuses |
| Series | RLS |
| Rated Breaking Capacity | 10 kA |
| Catalog ID | GOURLS20 |
