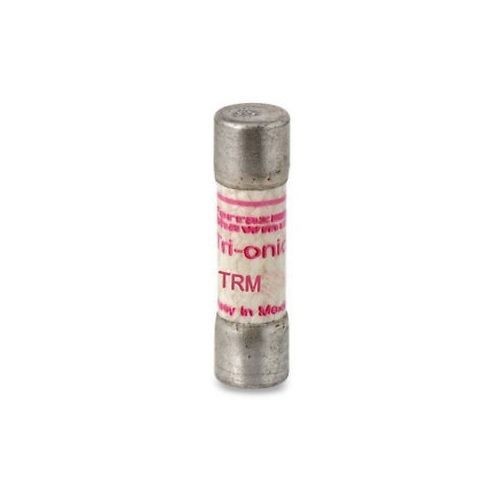

Mersen TRM12 Low Voltage Time Delay Fuse, 12 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
Mersen TRM12 Low Voltage Time Delay Fuse, 12 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
SKU: GOUTRM12
Manufacturer Part Number: TRM12
UPC: 782001746599
Documents
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Material | Poly |
| Mounting Type | Clip |
| Response Time | 2 sec |
| Series | TRM |
| Terminal Type | Ferrule |
| Type | Time Delay |
| Voltage Rating | 250 VAC |
| Application | Small Motors, Small Transformers, Lighting Circuits and Control Circuits |
| Standard & Approvals | UL File No. E33925, C22.2 No. 248.14, RoHS Compliant |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Body Style | Cylindrical |
| Class | Midget |
| Amperage Rating | 12 A |
