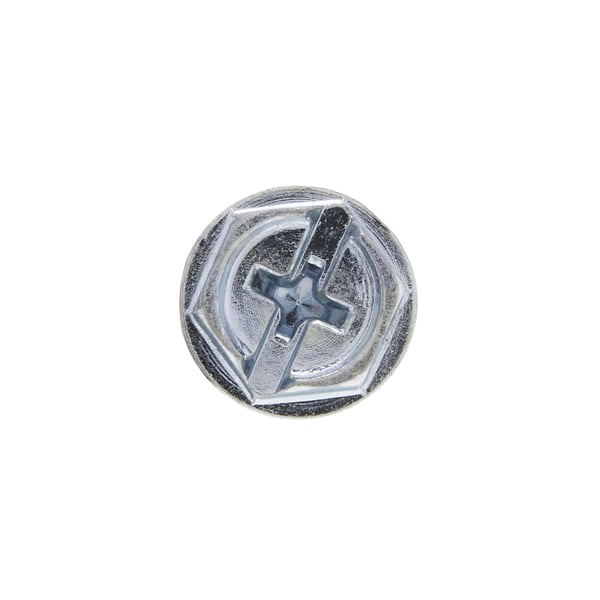

Metallics JDSP81 Tapping Screw, #10-12, 3 in OAL, Indented Hex Head, Phillips® Drive, Steel, Zinc Plated, Gimlet Point
Metallics JDSP81 Tapping Screw, #10-12, 3 in OAL, Indented Hex Head, Phillips® Drive, Steel, Zinc Plated, Gimlet Point
SKU: MTSJDSP81
Manufacturer Part Number: JDSP81
UPC: 639720920680
Documents
Features
- A thread forming tapping screw with wider spaced threads than a type AB and a gimlet point
- For self starting in thin (0.015 to 0.05 in THK) metal or resin filled plywood
- Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments
Specification
| Head Type | Indented Hex |
|---|---|
| Material | Steel |
| Measurement System | Imperial |
| Overall Length | 3 in |
| Head Size | 0.105 to 0.12 in H x 0.3125 in W |
| Hardness | Rockwell C45 Surface/Rockwell C28 to 38 Core |
| Series | JDSP |
| Drive Type | Phillips® |
| Diameter - Thread Size | #10-12 |
| Thread Type | Self-Tapping |
| Finish | Zinc Plated |
| Point Type | Gimlet |
