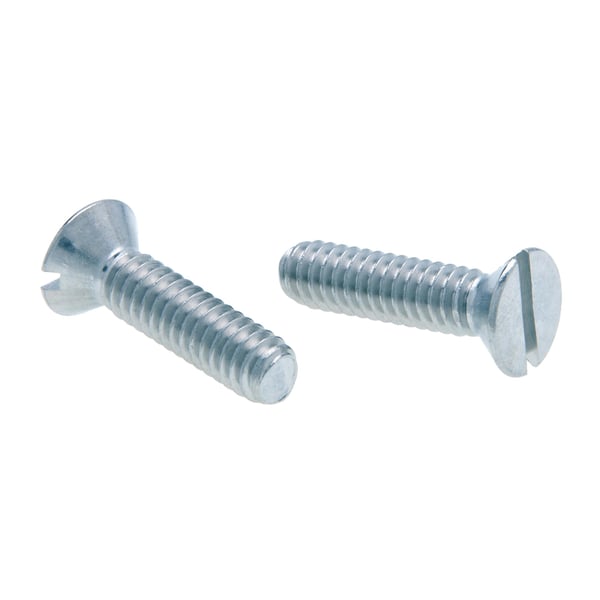

Metallics JFM68 Machine Screw, #6-32, 1-1/4 in OAL, Steel, Flat Head, Zinc Chromate, Slotted Drive

Selected Metallics FM136
Metallics FM136

Documents

Short Description

A countersunk head with a flat top surface and a cone-shaped bearing surface with a head angle of approximately 82°. Used in appllications where protrusion of the fastener above the mating surface is unacceptable. Use a protrusion gage when measuring head height.

Specification

Head Type
Flat
Thread Type
UNC
Drive Type
Slotted
Material
Steel
Overall Length
1-1/4 in
Diameter - Thread Size
#6-32
Color
Silver
Measurement System
Imperial
Head Size
0.069 to 0.83 in H x 0.244 to 0.279 in W
Drive Size
#2
Finish
Zinc Chromate
