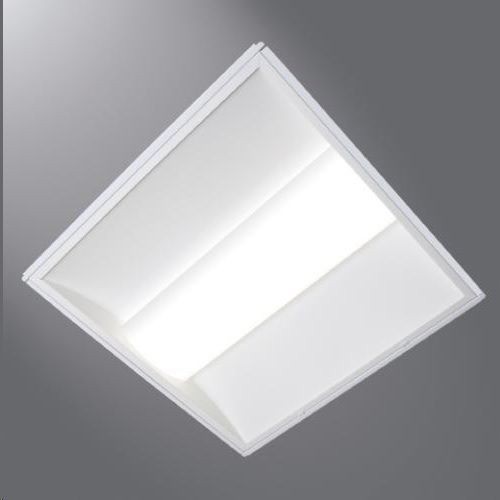

Metalux® 22CZ-LD5-34-UNV-L835-CD1-U 2x2 Cruze Direct/Indirect Specification Grade Specification Recessed Troffer, LED 5.0 Lamp, 29.4 W Fixture, 120 to 277 VAC, Cold Rolled Steel Housing
Metalux® 22CZ-LD5-34-UNV-L835-CD1-U 2x2 Cruze Direct/Indirect Specification Grade Specification Recessed Troffer, LED 5.0 Lamp, 29.4 W Fixture, 120 to 277 VAC, Cold Rolled Steel Housing
SKU: MET22CZLD534UNVL835CD1U
Manufacturer Part Number: 22CZ-LD5-34-UNV-L835-CD1-U
UPC: 080083796502
Documents
Short Description
Features
- The Cruze series features efficiency, quality and performance
- Rigid housing is die formed of code gauge prime cold rolled steel and features full length die formed stiffeners and unibody endplate for added strength
- Side flanges are hemmed
- Innovative design provides superior lens brightness uniformity and visual comfort
- Unibody endplates are securely attached with interlocking tabs and screws
- Four auxiliary fixture end suspension points provided
- 0.106 A at 277 VAC
Specification
| Housing Material | Cold Rolled Steel |
|---|---|
| Lamp Type | LED 5.0 |
| Lens Type | Ribbed Frosted Acrylic |
| Light Output | 119 |
| Lumens | 3400 Lumens |
| Mounting Type | Ceiling |
| Amperage Rating | 0.106 A |
| Dimensions | 24-1/2 in L x 24 in W x 3-1/2 in H |
| Voltage Rating | 120 to 277 VAC |
| Application | Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications and Damp Locations |
| Average Life | 60000 |
| Ballast Type | 0 to 10 VDC Dimming |
| Color Rendering Index (CRI) | 85 |
| Color Temperature | 3500 |
| Fixture Wattage | 29.4 W |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, DLC Listed, DLC Premium Listed, UL Recognized, cULus 1598, IC Rated, NOM Compliant, ECCN:EAR99NLR |
