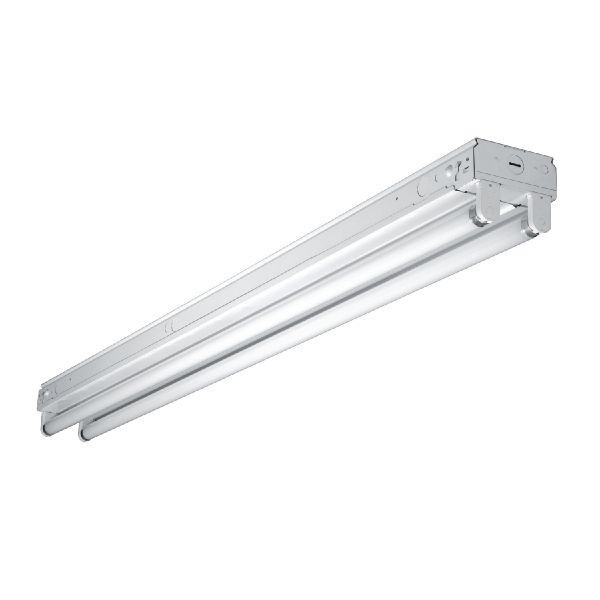

Metalux® 8TSSF-254T5-UNV-EBT1-U SSF Series Standard Strip Light, (2) T5 Fluorescent Lamp, 54 W Fixture, 120 to 277 V, Baked White Enamel Painted Housing

Selected SSF-225-UNV-EB81-UMetalux® 8TSSF-254T5-UNV-EBT1-U SSF Series Standard Strip Light, (2) T5 Fluorescent Lamp, 54 W Fixture, 120 to 277 V, Baked White Enamel Painted Housing
SSF-225-UNV-EB81-UMetalux® 8TSSF-254T5-UNV-EBT1-U SSF Series Standard Strip Light, (2) T5 Fluorescent Lamp, 54 W Fixture, 120 to 277 V, Baked White Enamel Painted Housing

Documents

Short Description

The SSF series is a functional and multi-purpose standard strip family that incorporates premium performance and construction durability. Designed with our easy-to-use flip-up socket design, the SSF significantly reduces installation time. The performance and application versatility of this series can be increased by incorporating symmetrical or asymmetrical reflectors. The SSF series can be installed using various mounting methods and numerous options and accessories are available. The SSF series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility areas, coves, display cases, shops, task and general area lighting. Certain airborne contaminants can diminish the integrity of acrylic components. Refer to the material compatibility tables for additional information.

Features

  • Flip-up socket feature for faster installation out of the box
  • Die formed cold rolled steel channel construction with numerous KOs
  • Pressure lock lampholders (RS), spring-loaded lampholders (SL)
  • Easy wireway access/wireway cover removed without tools
  • Tandem 8 ft lengths
  • Storage or utility area, cove or display case application
  • Lamp not included
  • 0.195 A at 277 V amperage rating

Specification

Insulation Type
Class P
Number of Lamps
2
Voltage Rating
120 to 277 V
Ballast Type
Instant Start Electronic
Fixture Wattage
54 W
Standard & Approvals
cUL Listed for Damp Location, ECCN: EAR99NLR, UL Listed
Application
Commercial, Industrial, Retail, Residential and Lighting Applications
Dimensions
92 in L x 4-1/4 in W x 3-3/16 in H
Amperage Rating
0.195 A
Mounting Type
Strip
Lamp Type
T5 Fluorescent
Housing Material
CRS
Housing Finish
Baked White Enamel Painted
