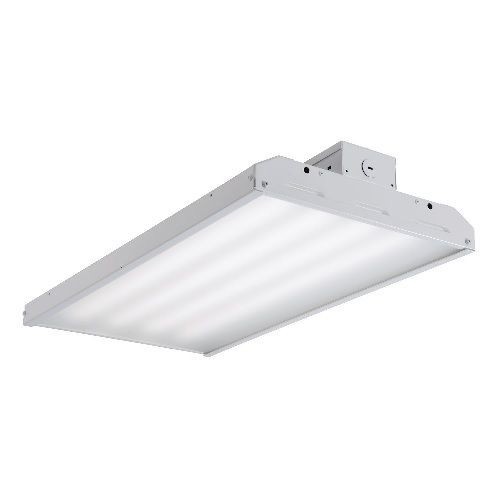

Metalux® LHB-12-UNV-L840-CD-U Linear High Bay Fixture, LED Lamp, 120 to 277 VAC, White Polyester Powder Coated Housing

Selected Metalux® LHB-12-UNV-L840-CD-U Linear High Bay Fixture, LED Lamp, 120 to 277 VAC, White Polyester Powder Coated Housing
Metalux® LHB-12-UNV-L840-CD-U Linear High Bay Fixture, LED Lamp, 120 to 277 VAC, White Polyester Powder Coated Housing

Short Description

LHB LED linear high bay luminaires are designed for a wide variety of applications and mounting heights while delivering an affordable value proposition to customers. It's full body construction with center driver housing provides durability and thermal control. The LHB comes standard with a diffused lens providing added protection and glare control. The LHB is an energy efficient 1-for-1 replacement of linear fluorescent and HID fixtures and is the ideal linear high bay fixture for use in warehousing, manufacturing, gymnasium and big box/retail applications.

Features

  • Standard diffused lens provides added protection and glare control
  • High performance efficacy up to 143 Lumens/W
  • Efficient 1 for 1 replacement of linear fluorescent and HID fixtures
  • Medium distribution
  • 18 in pieces of chain for rapid installation
  • 0.314 A at 277 VAC amperage rating

Specification

Housing Finish
White Polyester Powder Coated
Housing Material
Cold Rolled Steel
Lamp Type
LED
Lamp Wattage
87 W
Lens Type
Acrylic/Diffused
Light Output
131 Lumens/W
Lumens
12000 Lumens
Mounting Type
Suspended
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.314 A
Average Life
60000 hr
Ballast Type
0 to 10 VDC Dimming/Electronic
Catalog ID
METLHB-12-UNV-L840-CD-U
Color Rendering Index (CRI)
80 CRI
Color Temperature
4000 K
Dimensions
23-3/4 in L x 12-5/8 in W x 3-5/8 in D
Voltage Rating
120 to 277 VAC
Application
Lighting, Warehousing, Manufacturing, Gymnasium, Sports/Recreation, Cold Storage, Big Box/Retail and Industrial Applications
Includes
(1) V-Hanger and (2) 18 in Pieces of Chain
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, ECCN: EAR99NLR, cULus Listed for Damp Locations, IESNA LM-79/LM-80, DLC Premium Listed
