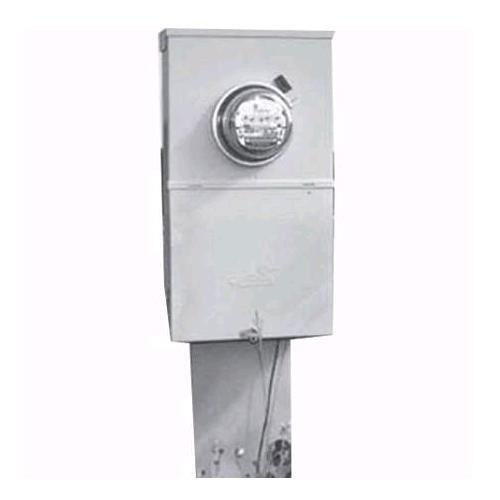

Midwest® GE R101C Ringless Metered Power Outlet, 100 A, 1 Phase, NEMA 3R Enclosure

Selected Midwest® GE R101C Ringless Metered Power Outlet, 100 A, 1 Phase, NEMA 3R Enclosure
Midwest® GE R101C Ringless Metered Power Outlet, 100 A, 1 Phase, NEMA 3R Enclosure

Documents

Short Description

Service entrance products are typically utilized on single family residences and mobile homes. Additionally, service entrance for mobile homes is generally located within 30 feet of the mobile home. This location requirement by the NEC and the common use of underground service feeders, combine to make service entrance on a pedestal the preferred installation method by many park owners. Midwest offers a broad range of pedestal units, factory assembled and wired, with loop feed lugs to reduce installation time and labor expense. Midwest also offers a wide selection of surface units for single family residences and mobile home sites.

Features

  • National Electric Code requires electrical distribution equipment to be rated as "Service Entrance", wherever electrical power enters a building or other structure
  • Service entrance products are typically utilized on single-family residences and mobile homes
  • Midwest Electric offers a broad range of surface mount and pedestal units, factory assembled and wired
  • Pedestal units come standard with loop feed lugs to reduce installation time and labor expense
  • Service Entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading
  • Durable polyester powder coat finish resists chipping and fading
  • Segregated meter compartment for utility power protection
  • Weather resistant and tamper resistant GFCI receptacles
  • Horn bypass comes standard on ringless metered units
  • Cu/Al rated field terminations
  • Factory installed Cu/Al equipment ground lug
  • Padlock provision to prevent unauthorized entry
  • No space
  • 9 x 30 cabinet size
  • 9-3/4 in W x 5-3/16 in D x 30 in H
  • (2) 1, 1-1/4, 1-1/2in, (2) 1/2, 3/4, 1 in, (1) 9/32 in Knockouts
  • Series wiring configuration
  • Circuit Protection
  • Hub provision

Specification

Material
Galvanized Steel
Mounting Type
Surface
Phase
1
Short Circuit Rating
10 kA
Type
Ringless
Voltage Rating
120/240 VAC
Application
Construction/Residential
Standard & Approvals
RoHS Compliant, UL Listed
Amperage Rating
100 A
Circuit Breaker Type
THQL21100
Connection Type
Lug
Enclosure Type
NEMA 3R
Feed Type
Top
