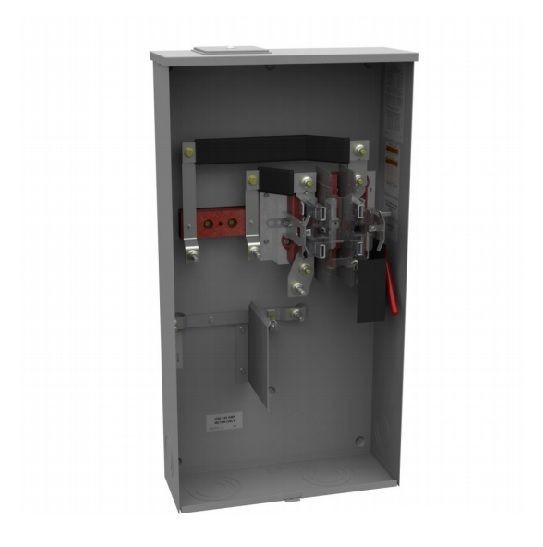

Milbank® U2448-X 1-Position Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
Milbank® U2448-X 1-Position Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
SKU: MLBU2448-X
Manufacturer Part Number: U2448-X
UPC: 784572135437
Features
- No cutouts
- G90 galvanized steel with powder coat finish enclosure
- 3/8 in x 16 stud, aluminum/copper, line/load wire
Specification
| Frequency Rating | 60 |
|---|---|
| Hub Type | Large Closing Plate |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 320 A |
| Catalog ID | MLBU2448-X |
| Cover Type | Ringless |
| Dimensions | 6-1/2 in ID x 17-3/4 in OD x 34-1/8 in H |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead/Underground |
| Phase | 1 |
| Terminal Type | 3/8 in Stud Line/Load Side |
| Type | 1-Position |
| Voltage Rating | 600 VAC |
| Application | For use with meter mounting base |
| Standard & Approvals | UL Listed |
